MEXA 70

Recessed

Application: shops, entrance lobbies, toilets, apartments
Housing: cast aluminum
The color of the housing: Black
Lifetime Lxx Bxx: L80B10@60.000h
Color rendering index: 90
Power Supply: electronic, complete with luminaire
Other: a mounting bracket is required for installation (various versions available in accessories after selecting the fixture), various decorative covers are also available; the optical system of the luminaire can be rotated vertically (0-30°)
Project tools
Dokumenty

You are about to download a large amount of files.

It may take a while. Do you want to continue?

Hide filter
Type of assembly
Shape of the luminaire
Type of shutter/plate
The color of the housing
The color of the light
IP
Length [mm]
Diameter [mm]
LED supply current
Distribution angle [°]
Luminaire power [W]
Luminaire luminous flux [lm]
Type of control
Code LED supply current Type of shutter/plate Distribution angle [°] Luminaire power [W] Luminaire luminous flux [lm] The color of the housing The color of the light Type of control Files
Mexa 70 Recessed Lens 930, 50d., 180mA, RAL9005
02.159.0000.03.930.180 		180mA Lens 50° 6 380 Black 930 ON/OFF
Mexa 70 Recessed Lens 930, 50d., 180mA, DALI, RAL9005
02.159.0000.03.930.180.DALI 		180mA Lens 50° 6 380 Black 930 DALI
Mexa 70 Recessed Lens 930, 50d., 250mA, RAL9005
02.159.0000.03.930.250 		250mA Lens 50° 10 600 Black 930 ON/OFF
Mexa 70 Recessed Lens 930, 50d., 250mA, DALI, RAL9005
02.159.0000.03.930.250.DALI 		250mA Lens 50° 10 600 Black 930 DALI
Mexa 70 Recessed Lens 930, 50d., 350mA, RAL9005
02.159.0000.03.930.350 		350mA Lens 50° 15 800 Black 930 ON/OFF
Mexa 70 Recessed Lens 930, 50d., 350mA, DALI, RAL9005
02.159.0000.03.930.350.DALI 		350mA Lens 50° 15 800 Black 930 DALI
Mexa 70 Recessed Lens 930, 50d., 450mA, RAL9005
02.159.0000.03.930.450 		450mA Lens 50° 20 960 Black 930 ON/OFF
Mexa 70 Recessed Lens 930, 50d., 450mA, DALI, RAL9005
02.159.0000.03.930.450.DALI 		450mA Lens 50° 20 960 Black 930 DALI
Mexa 70 Recessed Lens 940, 50d., 180mA, RAL9005
02.159.0000.03.940.180 		180mA Lens 50° 6 400 Black 940 ON/OFF
Mexa 70 Recessed Lens 940, 50d., 180mA, DALI, RAL9005
02.159.0000.03.940.180.DALI 		180mA Lens 50° 6 400 Black 940 DALI
Mexa 70 Recessed Lens 940, 50d., 250mA, RAL9005
02.159.0000.03.940.250 		250mA Lens 50° 10 630 Black 940 ON/OFF
Mexa 70 Recessed Lens 940, 50d., 250mA, DALI, RAL9005
02.159.0000.03.940.250.DALI 		250mA Lens 50° 10 630 Black 940 DALI
Mexa 70 Recessed Lens 940, 50d., 350mA, RAL9005
02.159.0000.03.940.350 		350mA Lens 50° 15 840 Black 940 ON/OFF
Mexa 70 Recessed Lens 940, 50d., 350mA, DALI, RAL9005
02.159.0000.03.940.350.DALI 		350mA Lens 50° 15 840 Black 940 DALI
Mexa 70 Recessed Lens 940, 50d., 450mA, RAL9005
02.159.0000.03.940.450 		450mA Lens 50° 20 1100 Black 940 ON/OFF
Mexa 70 Recessed Lens 940, 50d., 450mA, DALI, RAL9005
02.159.0000.03.940.450.DALI 		450mA Lens 50° 20 1100 Black 940 DALI
Mexa 70 Recessed Lens 930, 28d., 180mA, RAL9005
02.159.0001.03.930.180 		180mA Lens 28° 6 450 Black 930 ON/OFF
Mexa 70 Recessed Lens 930, 28d., 180mA, DALI, RAL9005
02.159.0001.03.930.180.DALI 		180mA Lens 28° 6 450 Black 930 DALI
Mexa 70 Recessed Lens 930, 28d., 250mA, RAL9005
02.159.0001.03.930.250 		250mA Lens 28° 10 720 Black 930 ON/OFF
Mexa 70 Recessed Lens 930, 28d., 250mA, DALI, RAL9005
02.159.0001.03.930.250.DALI 		250mA Lens 28° 10 720 Black 930 DALI
Mexa 70 Recessed Lens 930, 28d., 350mA, RAL9005
02.159.0001.03.930.350 		350mA Lens 28° 15 950 Black 930 ON/OFF
Mexa 70 Recessed Lens 930, 28d., 350mA, DALI, RAL9005
02.159.0001.03.930.350.DALI 		350mA Lens 28° 15 950 Black 930 DALI
Mexa 70 Recessed Lens 930, 28d., 450mA, RAL9005
02.159.0001.03.930.450 		450mA Lens 28° 20 1150 Black 930 ON/OFF
Mexa 70 Recessed Lens 930, 28d., 450mA, DALI, RAL9005
02.159.0001.03.930.450.DALI 		450mA Lens 28° 20 1150 Black 930 DALI
Mexa 70 Recessed Lens 940, 28d., 180mA, RAL9005
02.159.0001.03.940.180 		180mA Lens 28° 6 480 Black 940 ON/OFF
Mexa 70 Recessed Lens 940, 28d., 180mA, DALI, RAL9005
02.159.0001.03.940.180.DALI 		180mA Lens 28° 6 480 Black 940 DALI
Mexa 70 Recessed Lens 940, 28d., 250mA, RAL9005
02.159.0001.03.940.250 		250mA Lens 28° 10 750 Black 940 ON/OFF
Mexa 70 Recessed Lens 940, 28d., 250mA, DALI, RAL9005
02.159.0001.03.940.250.DALI 		250mA Lens 28° 10 750 Black 940 DALI
Mexa 70 Recessed Lens 940, 28d., 350mA, RAL9005
02.159.0001.03.940.350 		350mA Lens 28° 15 1000 Black 940 ON/OFF
Mexa 70 Recessed Lens 940, 28d., 350mA, DALI, RAL9005
02.159.0001.03.940.350.DALI 		350mA Lens 28° 15 1000 Black 940 DALI
Mexa 70 Recessed Lens 940, 28d., 450mA, RAL9005
02.159.0001.03.940.450 		450mA Lens 28° 20 1150 Black 940 ON/OFF
Mexa 70 Recessed Lens 940, 28d., 450mA, DALI, RAL9005
02.159.0001.03.940.450.DALI 		450mA Lens 28° 20 1150 Black 940 DALI
Lighting effects
Product details

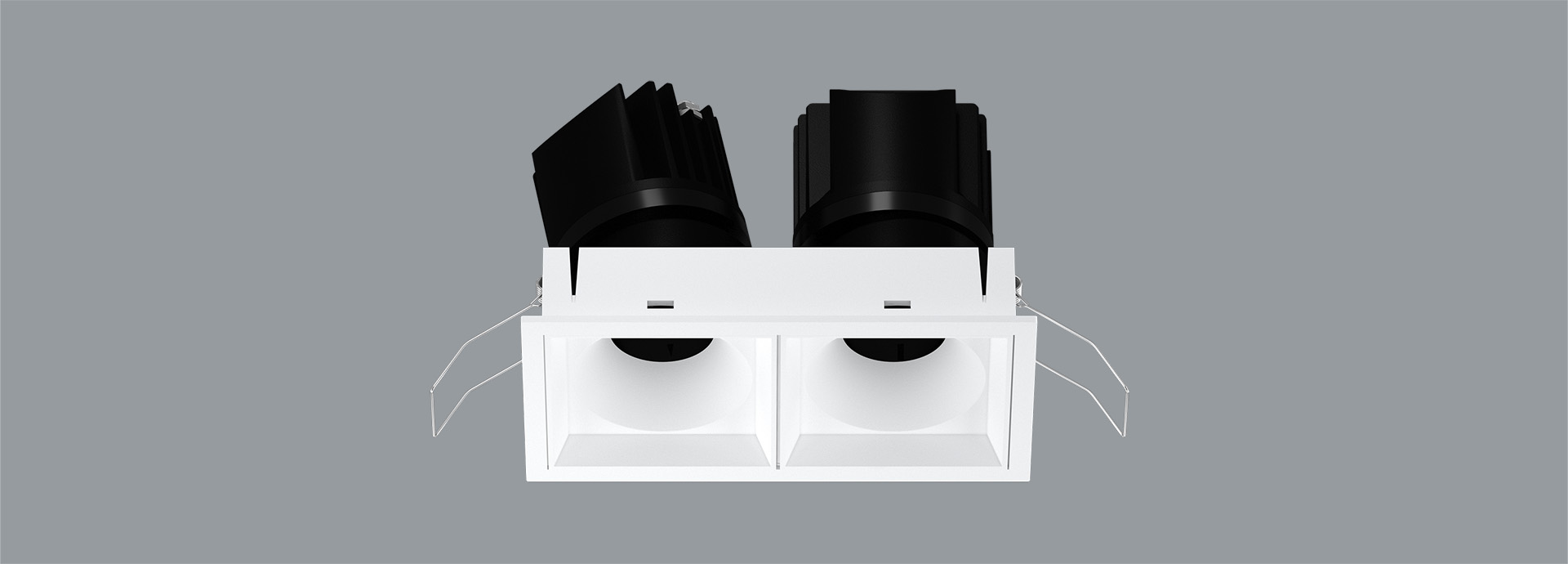

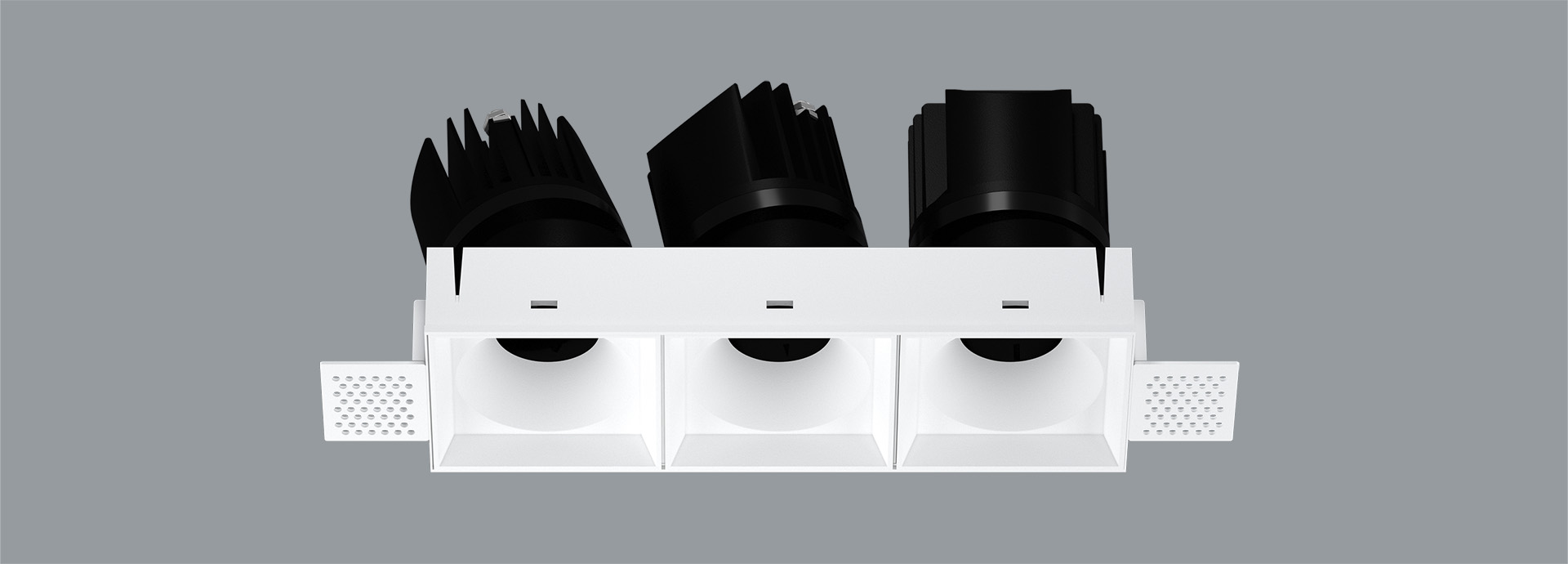

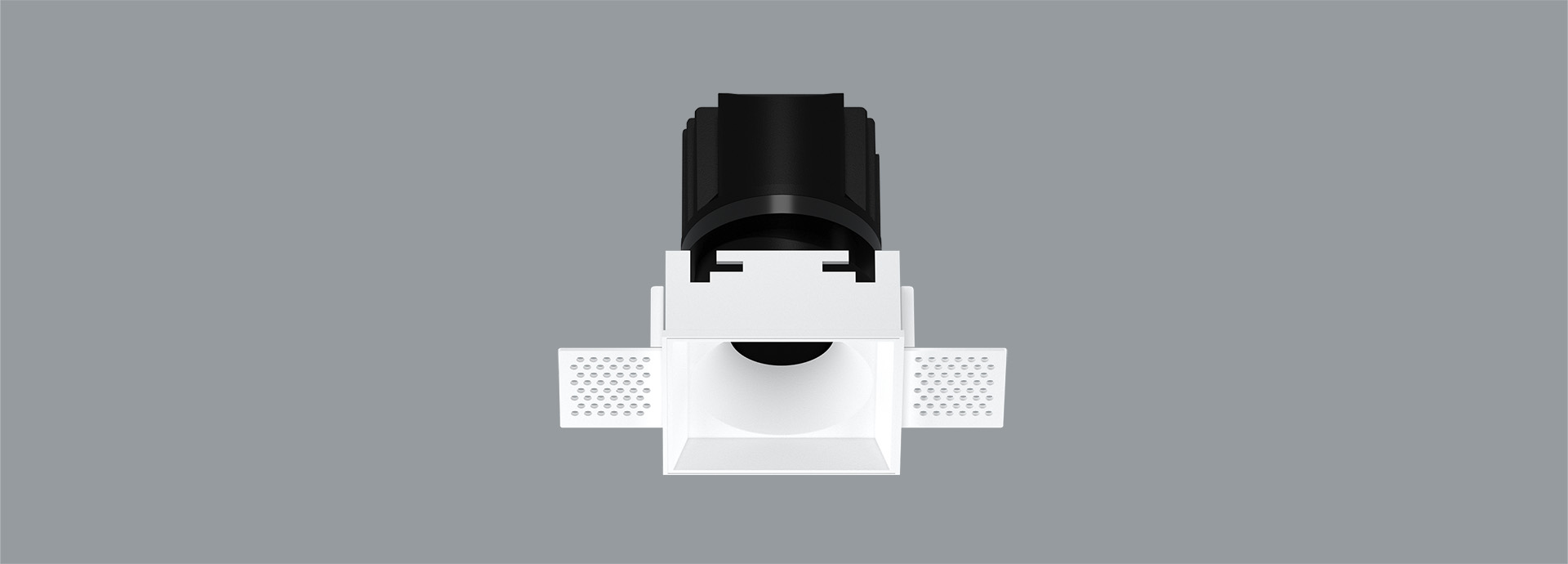

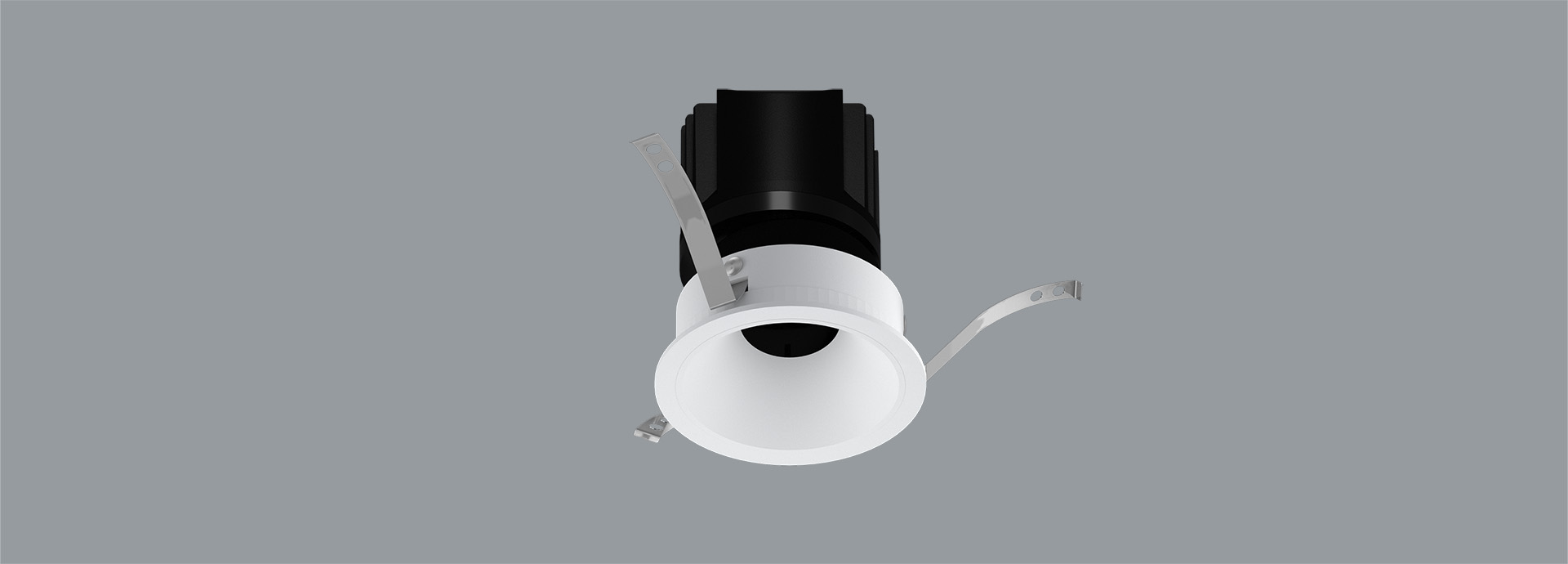

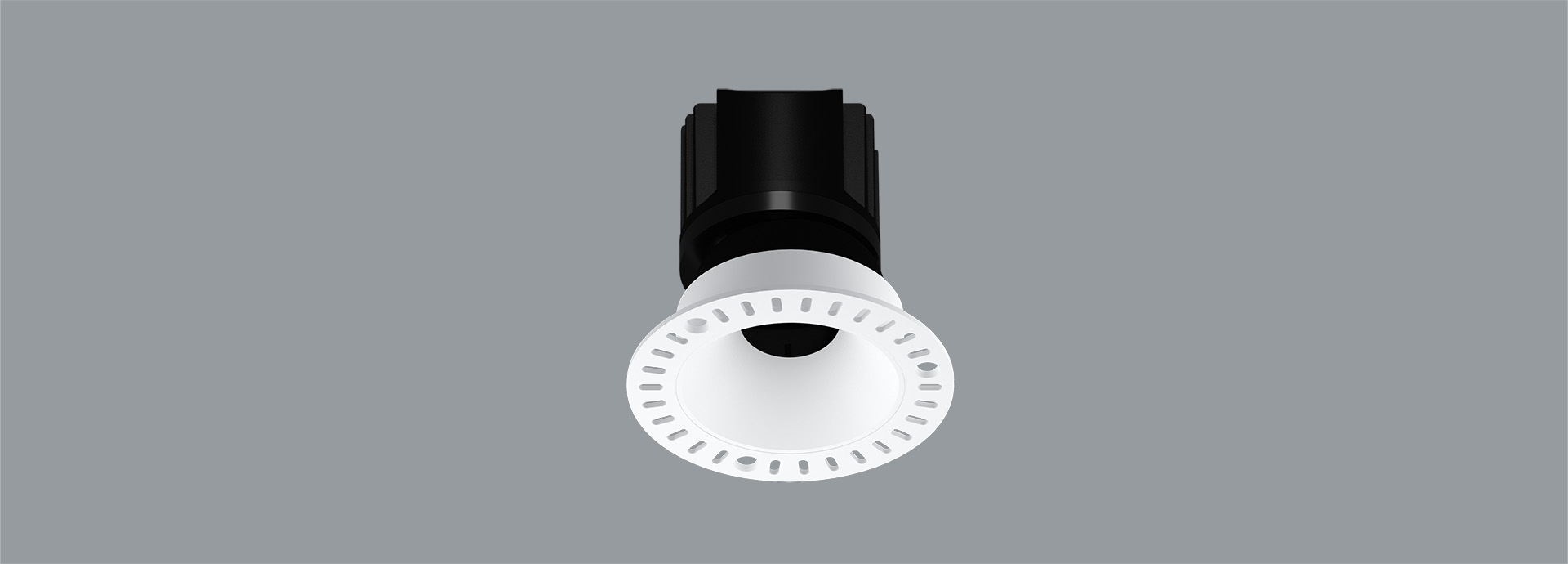

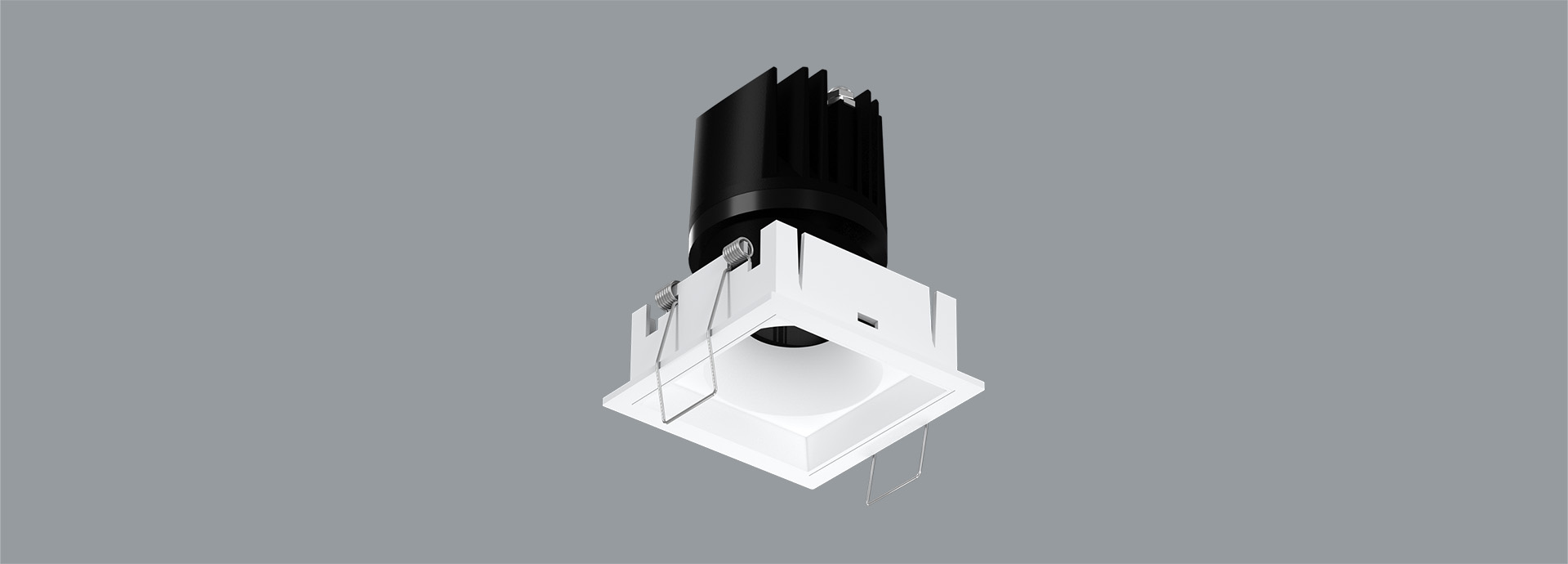

Various luminaire configurations

Brackets available with visible or invisible frame Round variant always for single light source Rectangular variants can contain up to 4 light sources

Orientation of the luminaire

Rotation of the optical system in the angle of 0 - 355° The inclination of the optical system in the angle of 0 - 30°

Decorative accessories

Elegant finishing available as standard in matt white, matt black and glossy black

Charakterystyka
Power supply included
accessories required
decorative accesories
accessories required
