ContactTechnical data
Luminaire power
14 - 50 [W]
Luminaire luminous flux
1100 - 4700 [lm]
Type of diffuser/plate
Micro-p, Micro-p/PLX

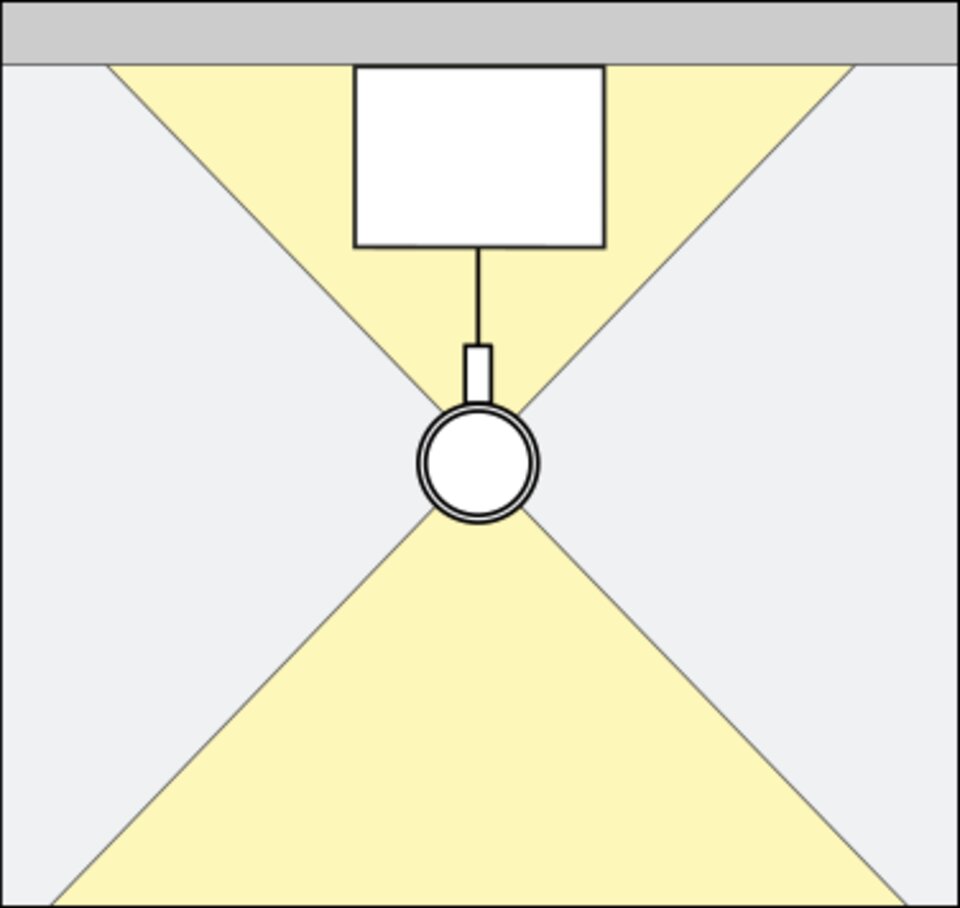

Distribution angle
74°
Color temperature
3000 K, 4000 K
Color rendering index
90
Light sources energy efficiency class
D
Lifetime Lxx Bxx
L90B10@60.000h
Length L
1206, 2402 mm
The color of the housing
White RAL9016, Black RAL9005
IP
IP40
Type of control
ON/OFF, DALI
Supply voltage
220-240 VAC, 50/60 Hz
Other
luminaire complete with electric and mechanical suspension, length L=1200mm.
[mm]
For download
You are about to download a large amount of files.
It may take a while. Do you want to continue?
Filters
| Code | Lighting direction | Type of diffuser/plate | Length L [mm] | Luminaire power [W] | Luminaire luminous flux [lm] | The color of the housing | The color of the light | Type of control | Files |
|---|---|---|---|---|---|---|---|---|---|
 LEA Suspended DI Micro-p HE/930, L=1206mm, RAL9016 |
DI | Micro-p | 1206 | 16 | 1200 | White RAL9016 | 930 | ON/OFF |
|
|
LEA Suspended DI Micro-p HE/930, L=1206mm, DALI, RAL9016 |
DI | Micro-p | 1206 | 16 | 1200 | White RAL9016 | 930 | DALI |
|
|
LEA Suspended DI Micro-p HE/940, L=1206mm, RAL9016 |
DI | Micro-p | 1206 | 16 | 1300 | White RAL9016 | 940 | ON/OFF |
|
|
LEA Suspended DI Micro-p HE/940, L=1206mm, DALI, RAL9016 |
DI | Micro-p | 1206 | 16 | 1300 | White RAL9016 | 940 | DALI |
|
 LEA Suspended DI Micro-p HE/930, L=1206mm, RAL9005 |
DI | Micro-p | 1206 | 16 | 1200 | Black RAL9005 | 930 | ON/OFF |
|
|
LEA Suspended DI Micro-p HE/930, L=1206mm, DALI, RAL9005 |
DI | Micro-p | 1206 | 16 | 1200 | Black RAL9005 | 930 | DALI |
|
|
LEA Suspended DI Micro-p HE/940, L=1206mm, RAL9005 |
DI | Micro-p | 1206 | 16 | 1300 | Black RAL9005 | 940 | ON/OFF |
|
|
LEA Suspended DI Micro-p HE/940, L=1206mm, DALI, RAL9005 |
DI | Micro-p | 1206 | 16 | 1300 | Black RAL9005 | 940 | DALI |
|
 LEA Suspended DI Micro-p HE/930, L=2402mm, RAL9016 |
DI | Micro-p | 2402 | 32 | 2400 | White RAL9016 | 930 | ON/OFF |
|
|
LEA Suspended DI Micro-p HE/930, L=2402mm, DALI, RAL9016 |
DI | Micro-p | 2402 | 32 | 2400 | White RAL9016 | 930 | DALI |
|
|
LEA Suspended DI Micro-p HE/940, L=2402mm, RAL9016 |
DI | Micro-p | 2402 | 32 | 2600 | White RAL9016 | 940 | ON/OFF |
|
|
LEA Suspended DI Micro-p HE/940, L=2402mm, DALI, RAL9016 |
DI | Micro-p | 2402 | 32 | 2600 | White RAL9016 | 940 | DALI |
|
 LEA Suspended DI Micro-p HE/930, L=2402mm, RAL9005 |
DI | Micro-p | 2402 | 32 | 2400 | Black RAL9005 | 930 | ON/OFF |
|
|
LEA Suspended DI Micro-p HE/930, L=2402mm, DALI, RAL9005 |
DI | Micro-p | 2402 | 32 | 2400 | Black RAL9005 | 930 | DALI |
|
|
LEA Suspended DI Micro-p HE/940, L=2402mm, RAL9005 |
DI | Micro-p | 2402 | 32 | 2600 | Black RAL9005 | 940 | ON/OFF |
|
|
LEA Suspended DI Micro-p HE/940, L=2402mm, DALI, RAL9005 |
DI | Micro-p | 2402 | 32 | 2600 | Black RAL9005 | 940 | DALI |
|
 LEA Suspended DI/IN Micro-p/PLX HE/930, L=1206mm, RAL9016 |
DI/IN | Micro-p/PLX | 1206 | 25 | 2150 | White RAL9016 | 930 | ON/OFF |
|
|
LEA Suspended DI/IN Micro-p/PLX HE/930, L=1206mm, DALI, RAL9016 |
DI/IN | Micro-p/PLX | 1206 | 25 | 2150 | White RAL9016 | 930 | DALI |
|
|
LEA Suspended DI/IN Micro-p/PLX HE/940, L=1206mm, RAL9016 |
DI/IN | Micro-p/PLX | 1206 | 25 | 2350 | White RAL9016 | 940 | ON/OFF |
|
|
LEA Suspended DI/IN Micro-p/PLX HE/940, L=1206mm, DALI, RAL9016 |
DI/IN | Micro-p/PLX | 1206 | 25 | 2350 | White RAL9016 | 940 | DALI |
|
