Technical data
Luminaire power
19 - 50 [W]
Luminaire luminous flux
2300 - 7250 [lm]
Type of diffuser/plate
PLX
Distribution angle
125°x103°
Color temperature
3000 K, 4000 K
Color rendering index
80
Lifetime Lxx Bxx
L70B50@60.000h
Length L
614, 1174, 1454 mm
The color of the housing
Gray RAL9006
IP
IP65
Type of control
ON/OFF
Supply voltage
220-240 VAC, 50/60 Hz
Other
additionally, the appropriate electric suspension with the length Z should be selected.
[mm]
For download
Project tools
Documents

You are about to download a large amount of files.

It may take a while. Do you want to continue?

Installation
Shape of the luminaire
Type of diffuser/plate
The color of the housing
The color of the light
IP
Length [mm]
Luminous flux level
Luminaire power [W]
Luminaire luminous flux [lm]
Apply filters
Filters
Code Type of diffuser/plate Luminous flux level Length L [mm] Luminaire power [W] Luminaire luminous flux [lm] The color of the housing The color of the light Files
FARO Surface PLX ST/830, L=614mm, IP65, RAL9006
07.104.2001.32.830 		PLX ST 614 19 2300 Gray RAL9006 830
FARO Surface PLX ST/840, L=614mm, IP65, RAL9006
07.104.2001.32.840 		PLX ST 614 19 2300 Gray RAL9006 840
FARO Surface PLX ST/830, L=1174mm, IP65, RAL9006
07.104.2003.32.830 		PLX ST 1174 33 4300 Gray RAL9006 830
FARO Surface PLX ST/840, L=1174mm, IP65, RAL9006
07.104.2003.32.840 		PLX ST 1174 33 4300 Gray RAL9006 840
FARO Surface PLX ST/830 L=1454mm, IP65, RAL9006
07.104.2004.32.830 		PLX ST 1454 47 6000 Gray RAL9006 830
FARO Surface PLX ST/840, L=1454mm, IP65, RAL9006
07.104.2004.32.840 		PLX ST 1454 47 6000 Gray RAL9006 840
FARO Surface PLX HO/840, L=1174mm, IP65, RAL9006
07.104.2005.32.840 		PLX HO 1174 50 7250 Gray RAL9006 840
See the implementations
Accessories
Suspensions

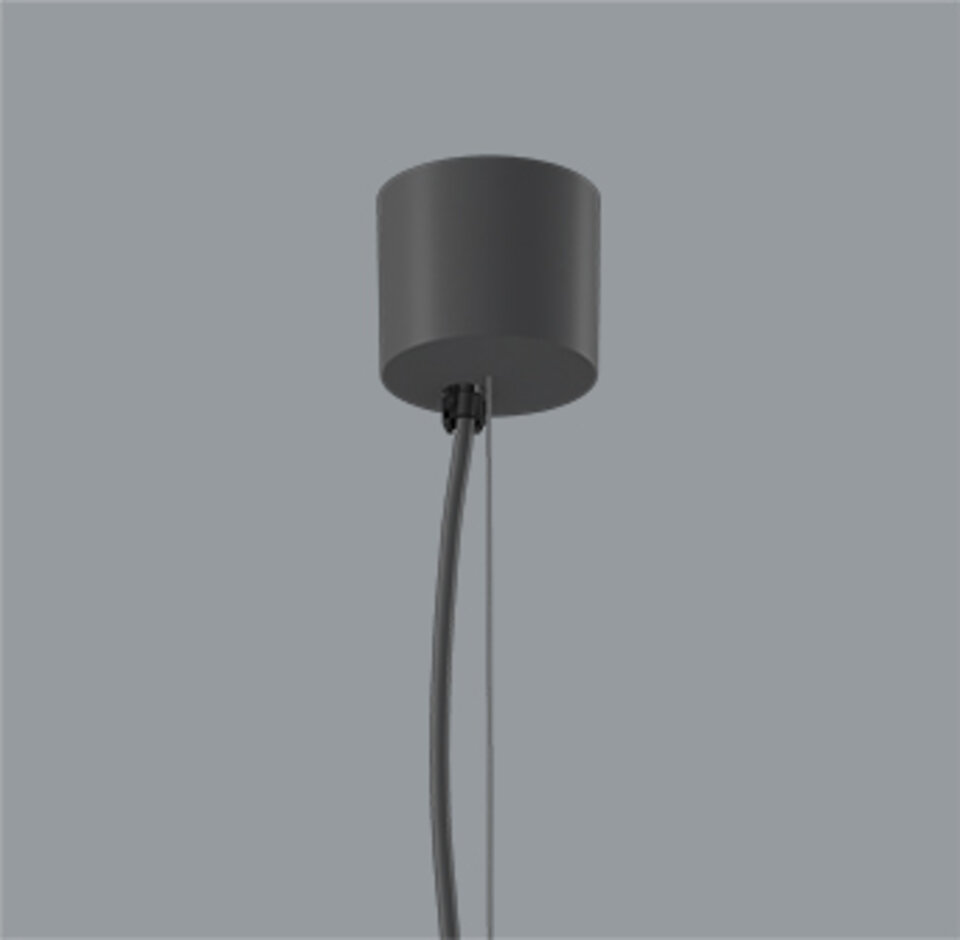

Electric suspension Ø70mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable
Code
Name
12.000.3011.01
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9016
12.000.3011.02
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9006
12.000.3011.03
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9005
Electric suspension Ø70mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable
Code
Name
12.000.3012.01
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9016
12.000.3012.02
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9006
12.000.3012.03
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9005
Electric suspension Ø70mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable
Code
Name
12.000.3013.01
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9016
12.000.3013.02
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9006
12.000.3013.03
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9005

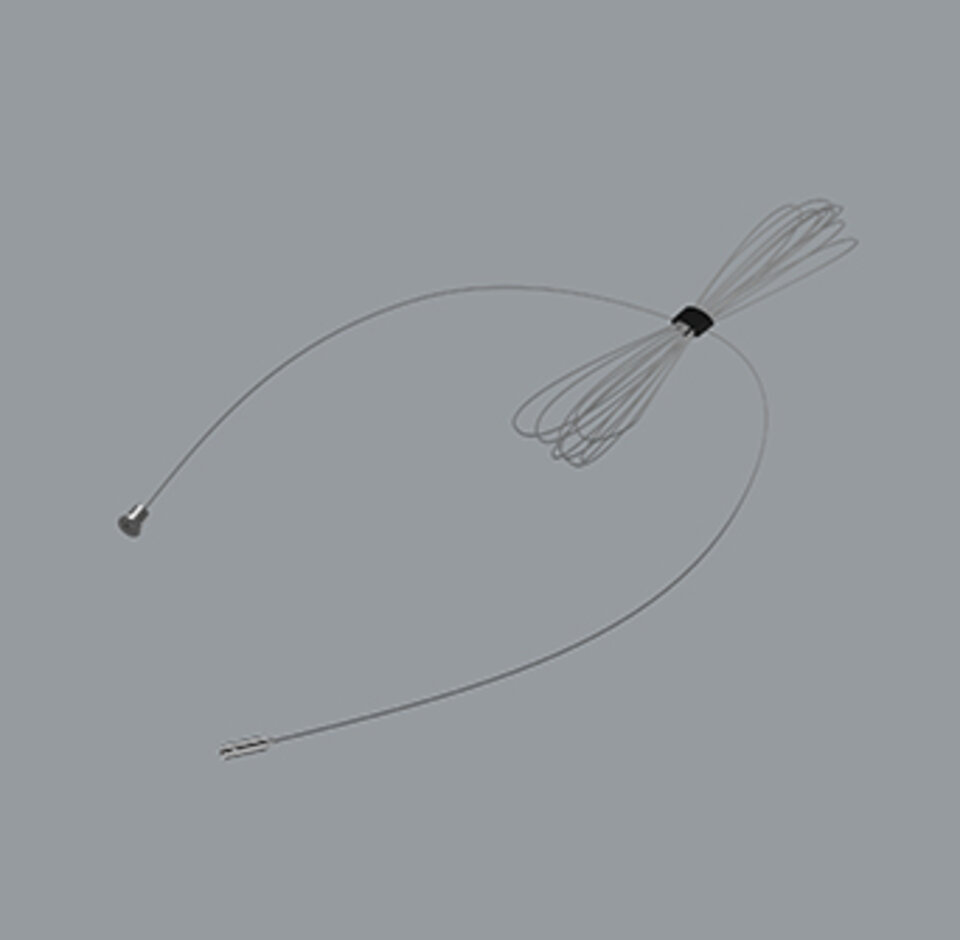

Mechanical suspension
Code
Name
70.0031
Mechanical suspension, L=1500mm
70.0031.01
Mechanical suspension, L=1500mm, white
70.0031.03
Mechanical suspension, L=1500mm, black
70.0032
Mechanical suspension, L=3000mm
70.0032.01
Mechanical suspension, L=3000mm, white
70.0032.03
Mechanical suspension, L=3000mm, black
70.0033
Mechanical suspension, L=5000mm
70.0033.01
Mechanical suspension, L=5000mm, white
70.0033.03
Mechanical suspension, L=5000mm, black
