Technical data
Luminaire power
16 - 74 [W]
Luminaire luminous flux
1300 - 11950 [lm]
Type of diffuser/plate
PLX

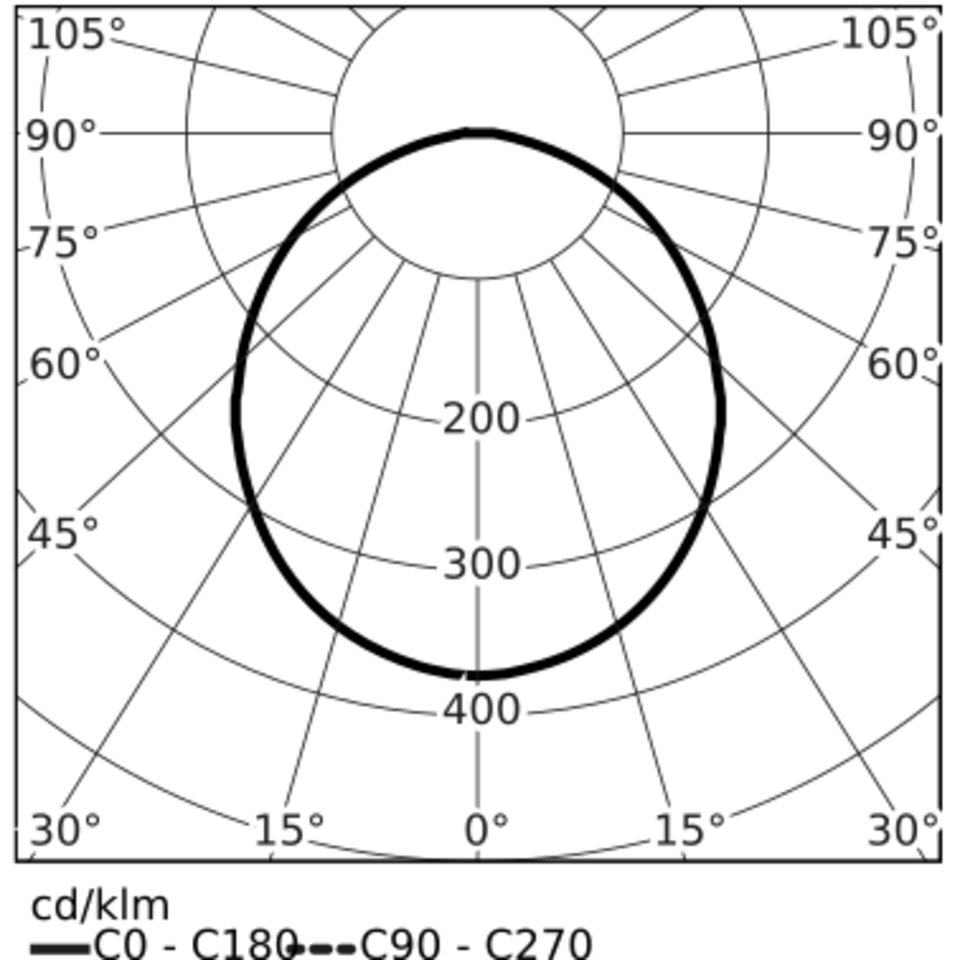

Distribution angle
100°, 104°
Color temperature
3000 K, 4000 K
Color rendering index
80, 90
Light sources energy efficiency class
C, D
Lifetime Lxx Bxx
L80B10@75.000h, L80B10@60.000h
Diameter D
300, 470, 590, 870 mm
The color of the housing
White RAL9016, Black RAL9005, Gray RAL9006
IP
IP20
Type of control
ON/OFF, DALI
Supply voltage
230V AC 50Hz
[mm]
For download
Project tools
Documents

You are about to download a large amount of files.

It may take a while. Do you want to continue?

Type of assembly
Shape of the luminaire
Type of diffuser/plate
The color of the housing
The color of the light
IP
Diameter [mm]
Luminous flux level
Luminaire power [W]
Luminaire luminous flux [lm]
Type of control
Apply filters
Filters
Code Diameter D [mm] Luminous flux level Type of diffuser/plate Luminaire power [W] Luminaire luminous flux [lm] The color of the housing The color of the light Type of control Files
AVALANGE EC Surface PLX 830, D=300mm RAL9016
08.157.2100.01.830 		300 ST PLX 16 1650 White RAL9016 830 ON/OFF
AVALANGE EC Surface PLX 830, D=300mm DALI RAL9016
08.157.2100.01.830.DALI 		300 ST PLX 16 1650 White RAL9016 830 DALI
AVALANGE EC Surface PLX 840, D=300mm RAL9016
08.157.2100.01.840 		300 ST PLX 16 1850 White RAL9016 840 ON/OFF
AVALANGE EC Surface PLX 840, D=300mm DALI RAL9016
08.157.2100.01.840.DALI 		300 ST PLX 16 1850 White RAL9016 840 DALI
AVALANGE EC Surface PLX 930, D=300mm RAL9016
08.157.2100.01.930 		300 ST PLX 16 1450 White RAL9016 930 ON/OFF
AVALANGE EC Surface PLX 930, D=300mm DALI RAL9016
08.157.2100.01.930.DALI 		300 ST PLX 16 1450 White RAL9016 930 DALI
AVALANGE EC Surface PLX 940, D=300mm RAL9016
08.157.2100.01.940 		300 ST PLX 16 1550 White RAL9016 940 ON/OFF
AVALANGE EC Surface PLX 940, D=300mm DALI RAL9016
08.157.2100.01.940.DALI 		300 ST PLX 16 1550 White RAL9016 940 DALI
AVALANGE EC Surface PLX 830, D=300mm RAL9006
08.157.2100.02.830 		300 ST PLX 16 1600 Gray RAL9006 830 ON/OFF
AVALANGE EC Surface PLX 830, D=300mm DALI RAL9006
08.157.2100.02.830.DALI 		300 ST PLX 16 1600 Gray RAL9006 830 DALI
AVALANGE EC Surface PLX 840, D=300mm RAL9006
08.157.2100.02.840 		300 ST PLX 16 1750 Gray RAL9006 840 ON/OFF
AVALANGE EC Surface PLX 840, D=300mm DALI RAL9006
08.157.2100.02.840.DALI 		300 ST PLX 16 1750 Gray RAL9006 840 DALI
AVALANGE EC Surface PLX 930, D=300mm RAL9006
08.157.2100.02.930 		300 ST PLX 16 1400 Gray RAL9006 930 ON/OFF
AVALANGE EC Surface PLX 930, D=300mm DALI RAL9006
08.157.2100.02.930.DALI 		300 ST PLX 16 1400 Gray RAL9006 930 DALI
AVALANGE EC Surface PLX 940, D=300mm RAL9006
08.157.2100.02.940 		300 ST PLX 16 1500 Gray RAL9006 940 ON/OFF
AVALANGE EC Surface PLX 940, D=300mm DALI RAL9006
08.157.2100.02.940.DALI 		300 ST PLX 16 1500 Gray RAL9006 940 DALI
AVALANGE EC Surface PLX 830, D=300mm RAL9005
08.157.2100.03.830 		300 ST PLX 16 1500 Black RAL9005 830 ON/OFF
AVALANGE EC Surface PLX 830, D=300mm DALI RAL9005
08.157.2100.03.830.DALI 		300 ST PLX 16 1500 Black RAL9005 830 DALI
AVALANGE EC Surface PLX 840, D=300mm RAL9005
08.157.2100.03.840 		300 ST PLX 16 1650 Black RAL9005 840 ON/OFF
AVALANGE EC Surface PLX 840, D=300mm DALI RAL9005
08.157.2100.03.840.DALI 		300 ST PLX 16 1650 Black RAL9005 840 DALI
