Technical specification

SCOUT

On ground

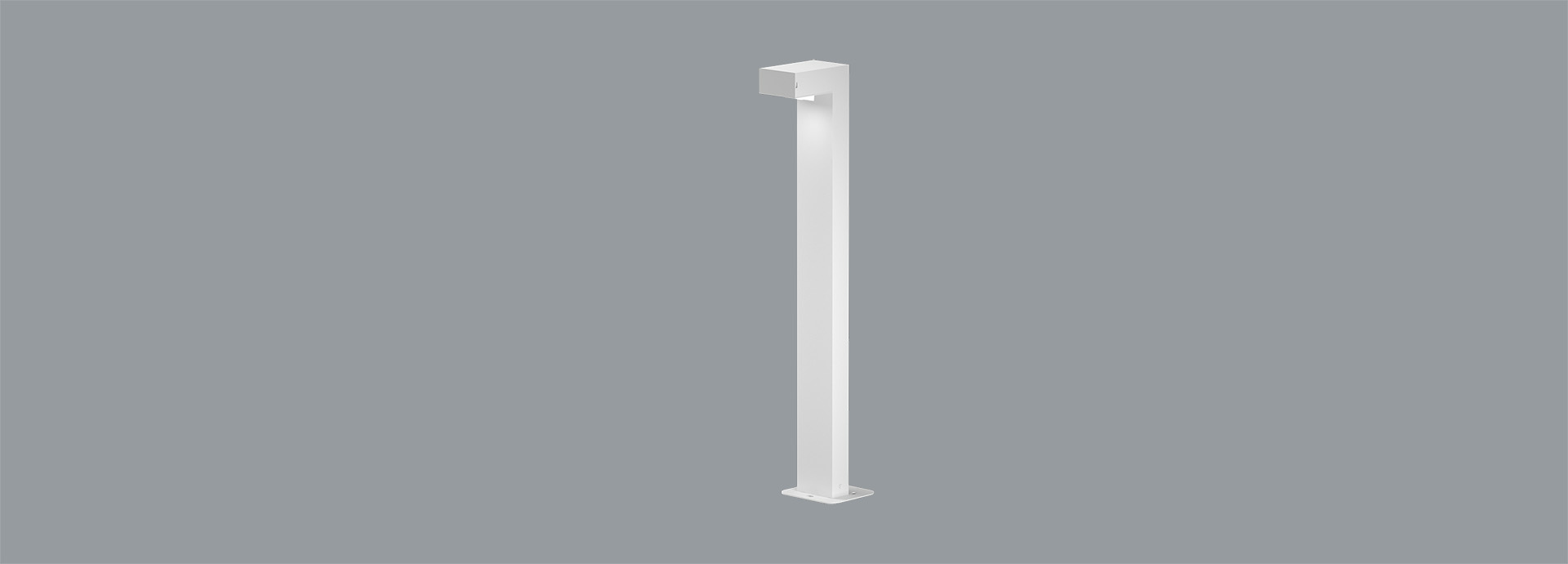

Description: Bollard with ROAD or ASYM optics
Application: outdoor areas, paths, parks
Housing: aluminium
Type of shutter/plate: Lens
Lifetime Lxx Bxx: L70B50@60.000h
Color rendering index: 90
Type of control: ON/OFF
Power Supply: electronic, complete with luminaire
Other: the standard luminaire fits the B-0 foundation (not included).

Project tools

3D model

LDT Files

Dokumenty

Family datasheet (.pdf)

CE Declaration of Conformity

Installation instruction

Code	Type of shutter/plate	Luminaire power [W]	Luminaire luminous flux [lm]	Luminaire luminous efficacy [lm/W]	Color temperature	The color of the housing	Other	Files
SCOUT L On ground Lens 930, ROAD, H=900mm, IP65, RAL9016 06.106.2001.01.930	Lens	15	1190	79	3000 K	White	ROAD	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 940, ROAD, H=900mm, IP65, RAL9016 06.106.2001.01.940	Lens	15	1292	86	4000 K	White	ROAD	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 930, ROAD, H=900mm, IP65, RAL9006 06.106.2001.02.930	Lens	15	1190	79	3000 K	Gray	ROAD	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 940, ROAD, H=900mm, IP65, RAL9006 06.106.2001.02.940	Lens	15	1292	86	4000 K	Gray	ROAD	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 930, ROAD, H=900mm, IP65, RAL9005 06.106.2001.03.930	Lens	15	1190	79	3000 K	Black	ROAD	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 940, ROAD, H=900mm, IP65, RAL9005 06.106.2001.03.940	Lens	15	1292	86	4000 K	Black	ROAD	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 930, ASYM, H=900mm, IP65, RAL9016 06.106.2002.01.930	Lens	15	1183	78	3000 K	White	ASYM	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 940, ASYM, H=900mm, IP65, RAL9016 06.106.2002.01.940	Lens	15	1286	85	4000 K	White	ASYM	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 930, ASYM, H=900mm, IP65, RAL9006 06.106.2002.02.930	Lens	15	1183	78	3000 K	Gray	ASYM	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 940, ASYM, H=900mm, IP65, RAL9006 06.106.2002.02.940	Lens	15	1286	85	4000 K	Gray	ASYM	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 930, ASYM, H=900mm, IP65, RAL9005 06.106.2002.03.930	Lens	15	1183	78	3000 K	Black	ASYM	LDT File 3D model Produkt datasheet (.pdf)
SCOUT L On ground Lens 940, ASYM, H=900mm, IP65, RAL9005 06.106.2002.03.940	Lens	15	1286	85	4000 K	Black	ASYM	LDT File 3D model Produkt datasheet (.pdf)
