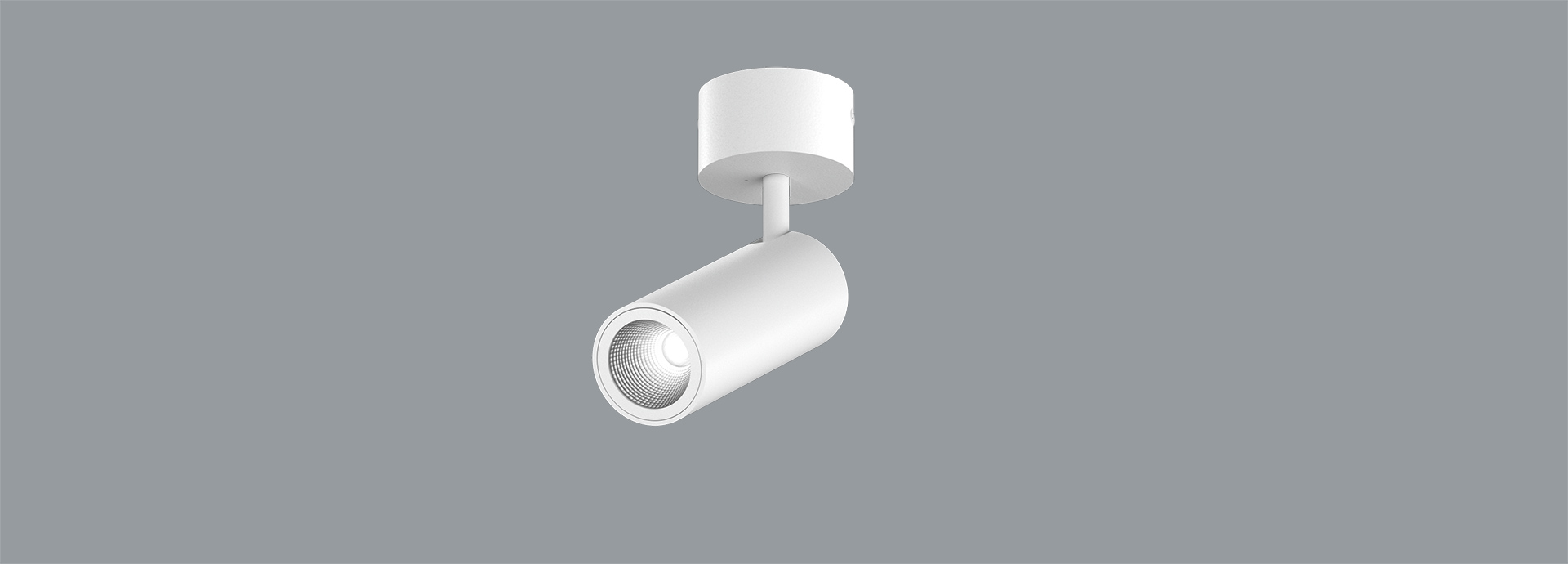

NOVUS 55
Surface-mounted
You are about to download a large amount of files.
It may take a while. Do you want to continue?
| Code | Type of light source | Luminous flux level | Luminaire power [W] | Luminaire luminous flux [lm] | Distribution angle [°] | Type of shutter/plate | The color of the housing | The color of the light | Files |
|---|---|---|---|---|---|---|---|---|---|
 Novus 55 Base IN LED GU10/830, 36° RAL9016 |
Lampa GU10 LED | ST | 4 | 350 | 36 | No diffuser | White | 830 |
|
|
Novus 55 Base IN LED GU10/840, 36° RAL9016 |
Lampa GU10 LED | ST | 4 | 350 | 36 | No diffuser | White | 840 |
|
 Novus 55 Base IN LED GU10/830, 36° RAL9005 |
Lampa GU10 LED | ST | 4 | 350 | 36 | No diffuser | Black | 830 |
|
|
Novus 55 Base IN LED GU10/840, 36° RAL9005 |
Lampa GU10 LED | ST | 4 | 350 | 36 | No diffuser | Black | 840 |
|
 Novus 55 Base IN LED HE/930, 19° 180mA RAL9016/RAL9016 |
LED COB | HE | 7 | 670 | 19 | Lens | White | 930 |
|
|
Novus 55 Base IN LED HE/940, 19° 180mA RAL9016/RAL9016 |
LED COB | HE | 7 | 710 | 19 | Lens | White | 940 |
|
 Novus 55 Base IN LED HE/930, 19° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 670 | 19 | Lens | Black | 930 |
|
|
Novus 55 Base IN LED HE/940, 19° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 710 | 19 | Lens | Black | 940 |
|
 Novus 55 Base IN LED HE/930, 19° 180mA RAL9016/ RAL9005 |
LED COB | HE | 7 | 670 | 19 | Lens | Black / White | 930 |
|
|
Novus 55 Base IN LED HE/940, 19° 180mA RAL9016/ RAL9005 |
LED COB | HE | 7 | 710 | 19 | Lens | Black / White | 940 |
|
 Novus 55 Base IN LED HE/930, 19° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 670 | 19 | Lens | Black /Gray | 930 |
|
|
Novus 55 Base IN LED HE/940, 19° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 710 | 19 | Lens | Black /Gray | 940 |
|
|
Novus 55 Base IN LED HE/930, 32° 180mA RAL9016/RAL9016 |
LED COB | HE | 7 | 660 | 32 | Lens | White | 930 |
|
|
Novus 55 Base IN LED HE/940, 32° 180mA RAL9016/RAL9016 |
LED COB | HE | 7 | 700 | 32 | Lens | White | 940 |
|
|
Novus 55 Base IN LED HE/930, 32° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 660 | 32 | Lens | Black | 930 |
|
|
Novus 55 Base IN LED HE/940, 32° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 700 | 32 | Lens | Black | 940 |
|
|
Novus 55 Base IN LED HE/930, 32° 180mA RAL9016/ RAL9005 |
LED COB | HE | 7 | 660 | 32 | Lens | Black / White | 930 |
|
|
Novus 55 Base IN LED HE/940, 32° 180mA RAL9016/ RAL9005 |
LED COB | HE | 7 | 700 | 32 | Lens | Black / White | 940 |
|
|
Novus 55 Base IN LED HE/930, 32° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 660 | 32 | Lens | Black /Gray | 930 |
|
|
Novus 55 Base IN LED HE/940, 32° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 700 | 32 | Lens | Black /Gray | 940 |
|
|
Novus 55 Base IN LED HE/930, 46° 180mA RAL9016/RAL9016 |
LED COB | HE | 7 | 640 | 46 | Lens | White | 930 |
|
|
Novus 55 Base IN LED HE/940, 46° 180mA RAL9016/RAL9016 |
LED COB | HE | 7 | 680 | 46 | Lens | White | 940 |
|
|
Novus 55 Base IN LED HE/930, 46° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 640 | 46 | Lens | Black | 930 |
|
|
Novus 55 Base IN LED HE/940, 46° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 680 | 46 | Lens | Black | 940 |
|
|
Novus 55 Base IN LED HE/930, 46° 180mA RAL9016/ RAL9005 |
LED COB | HE | 7 | 640 | 46 | Lens | Black / White | 930 |
|
|
Novus 55 Base IN LED HE/940, 46° 180mA RAL9016/ RAL9005 |
LED COB | HE | 7 | 680 | 46 | Lens | Black / White | 940 |
|
|
Novus 55 Base IN LED HE/930, 46° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 640 | 46 | Lens | Black /Gray | 930 |
|
|
Novus 55 Base IN LED HE/940, 46° 180mA RAL9005/ RAL9005 |
LED COB | HE | 7 | 680 | 46 | Lens | Black /Gray | 940 |
|
|
Novus 55 Base IN LED ST/930, 19° 250mA RAL9016/RAL9016 |
LED COB | ST | 10 | 920 | 19 | Lens | White | 930 |
|
|
Novus 55 Base IN LED ST/940, 19° 250mA RAL9016/RAL9016 |
LED COB | ST | 10 | 970 | 19 | Lens | White | 940 |
|
|
Novus 55 Base IN LED ST/930, 19° 250mA RAL9005/ RAL9005 |
LED COB | ST | 10 | 920 | 19 | Lens | Black | 930 |
|
|
Novus 55 Base IN LED ST/940, 19° 250mA RAL9005/ RAL9005 |
LED COB | ST | 10 | 970 | 19 | Lens | Black | 940 |
|
|
Novus 55 Base IN LED ST/930, 19° 250mA RAL9016/ RAL9005 |
LED COB | ST | 10 | 920 | 19 | Lens | Black / White | 930 |
|
|
Novus 55 Base IN LED ST/940, 19° 250mA RAL9016/ RAL9005 |
LED COB | ST | 10 | 970 | 19 | Lens | Black / White | 940 |
|
|
Novus 55 Base IN LED ST/930, 19° 250mA RAL9005/ RAL9005 |
LED COB | ST | 10 | 920 | 19 | Lens | Black /Gray | 930 |
|
|
Novus 55 Base IN LED ST/940, 19° 250mA RAL9005/ RAL9005 |
LED COB | ST | 10 | 970 | 19 | Lens | Black /Gray | 940 |
|
|
Novus 55 Base IN LED ST/930, 32° 250mA RAL9016/RAL9016 |
LED COB | ST | 10 | 910 | 32 | Lens | White | 930 |
|
|
Novus 55 Base IN LED ST/940, 32° 250mA RAL9016/RAL9016 |
LED COB | ST | 10 | 960 | 32 | Lens | White | 940 |
|
|
Novus 55 Base IN LED ST/930, 32° 250mA RAL9005/ RAL9005 |
LED COB | ST | 10 | 910 | 32 | Lens | Black | 930 |
|
|
Novus 55 Base IN LED ST/940, 32° 250mA RAL9005/ RAL9005 |
LED COB | ST | 10 | 960 | 32 | Lens | Black | 940 |
|
