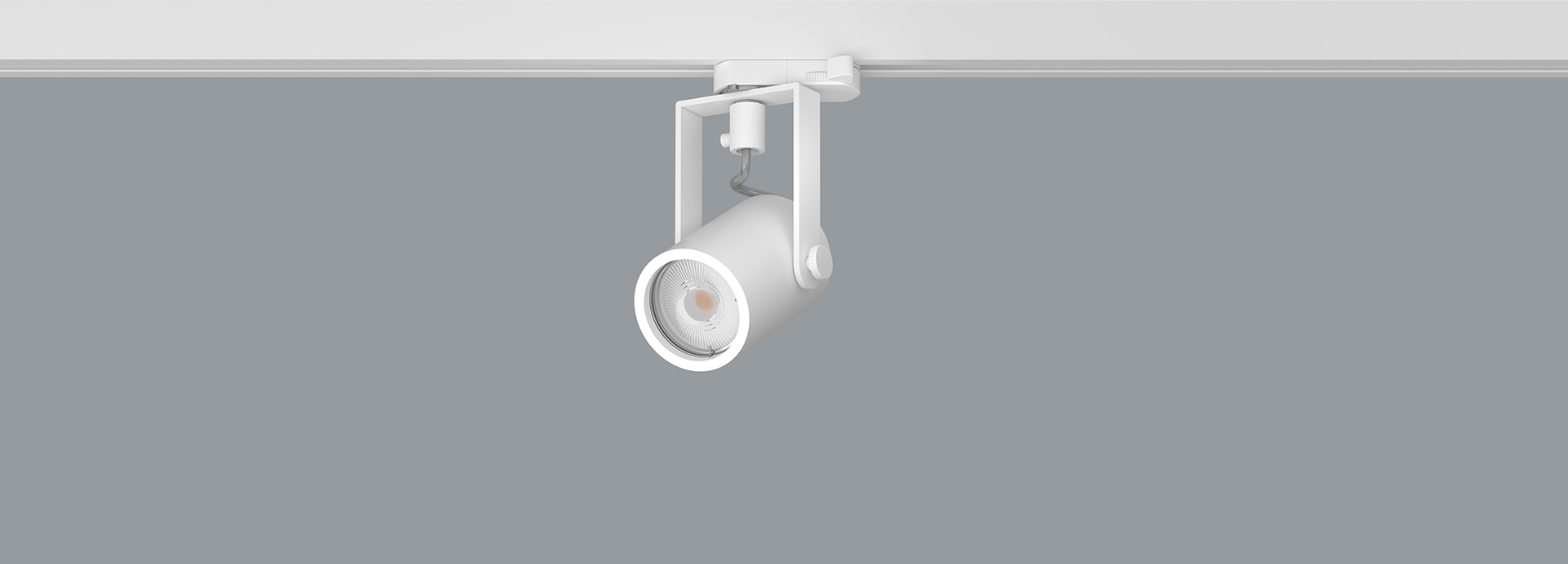

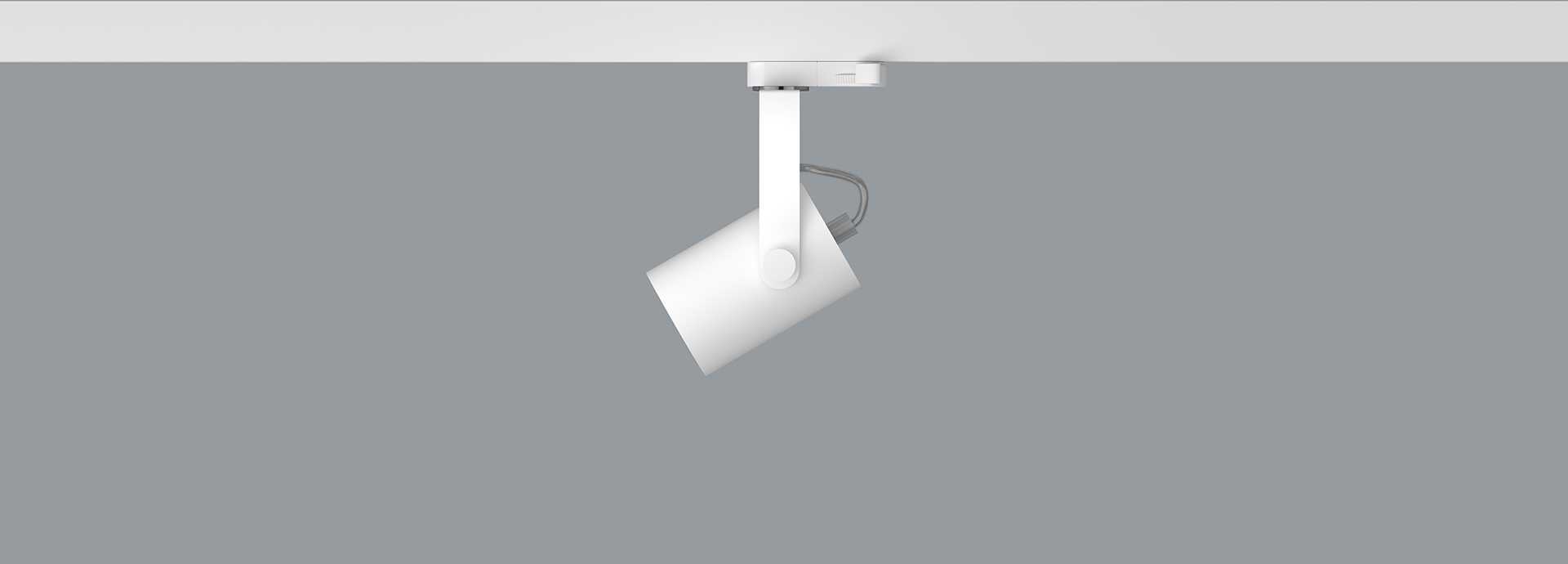

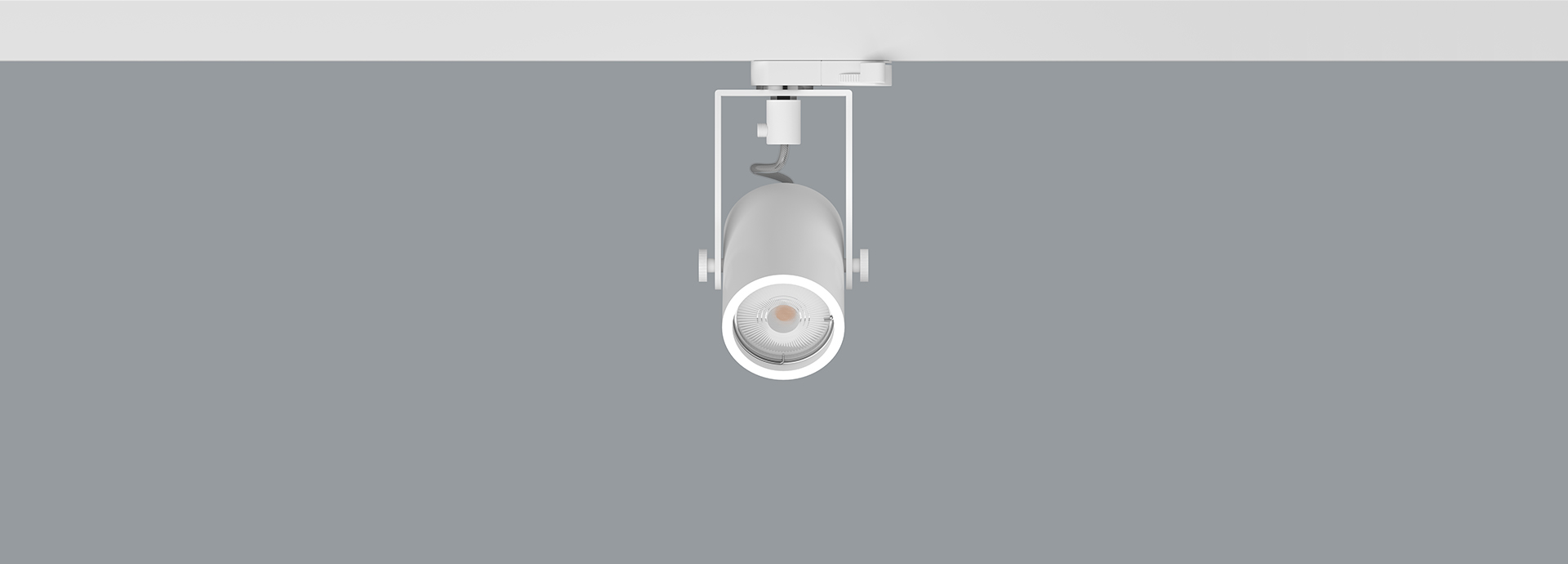

METALSPOT 60

For track

Application: shops, museums, expositions, accent lighting
Housing: Aluminium
Type of control: ON/OFF
Power Supply: electronic, complete with luminaire (ON / OFF)
Dokumenty

You are about to download a large amount of files.

It may take a while. Do you want to continue?

Hide filter
Type of assembly
Shape of the luminaire
Type of shutter/plate
The color of the housing
The color of the light
IP
Length [mm]
Diameter [mm]
Type of light source
Luminaire power [W]
Luminaire luminous flux [lm]
Distribution angle [°]
Other
Code Type of light source Length L [mm] Luminaire power [W] Luminaire luminous flux [lm] Distribution angle [°] The color of the housing The color of the light Other Files
MetalSpot 60 3-phase track GU10 RAL9016
04.021.0197.01 		Lampa GU10 LED 102 4 410 42 White N/D OUT
MetalSpot 60 3-phase track GU10 RAL9006
04.021.0197.02 		Lampa GU10 LED 102 4 410 42 Gray N/D OUT
MetalSpot 60 3-phase track GU10 RAL9005
04.021.0197.03 		Lampa GU10 LED 102 4 410 42 Black N/D OUT
MetalSpot 60 3-phase track LED/830, 42° RAL9016
04.021.0198.01.830 		LED COB 102 11 760 42 White 830 OUT
MetalSpot 60 3-phase track LED/930, 42° RAL9016
04.021.0198.01.930 		LED COB 102 11 700 42 White 930 OUT
MetalSpot 60 3-phase track LED/940, 42° RAL9016
04.021.0198.01.940 		LED COB 102 11 720 42 White 940 OUT
MetalSpot 60 3-phase track LED/830, 42° RAL9006
04.021.0198.02.830 		LED COB 102 11 760 42 Gray 830 OUT
MetalSpot 60 3-phase track LED/930, 42° RAL9006
04.021.0198.02.930 		LED COB 102 11 700 42 Gray 930 OUT
MetalSpot 60 3-phase track LED/940, 42° RAL9006
04.021.0198.02.940 		LED COB 102 11 720 42 Gray 940 OUT
MetalSpot 60 3-phase track LED/830, 42° RAL9005
04.021.0198.03.830 		LED COB 102 11 760 42 Black 830 OUT
MetalSpot 60 3-phase track LED/930, 42° RAL9005
04.021.0198.03.930 		LED COB 102 11 700 42 Black 930 OUT
MetalSpot 60 3-phase track LED/940, 42° RAL9005
04.021.0198.03.940 		LED COB 102 11 720 42 Black 940 OUT
MetalSpot 60 Eco 3-phase track GU10 RAL9016
04.021.0300.01 		Lampa GU10 LED 90 4 410 42 White N/D IN
MetalSpot 60 Eco 3-phase track GU10 RAL9006
04.021.0300.02 		Lampa GU10 LED 90 4 410 42 Gray N/D IN
MetalSpot 60 Eco 3-phase track GU10 RAL9005
04.021.0300.03 		Lampa GU10 LED 90 4 410 42 Black N/D IN
MetalSpot 60 Eco 3-phase track LED/830, 42° RAL9016
04.021.0301.01.830 		LED COB 90 11 760 42 White 830 IN
MetalSpot 60 Eco 3-phase track LED/930, 42° RAL9016
04.021.0301.01.930 		LED COB 90 11 700 42 White 930 IN
MetalSpot 60 Eco 3-phase track LED/940, 42° RAL9016
04.021.0301.01.940 		LED COB 90 11 720 42 White 940 IN
MetalSpot 60 Eco 3-phase track LED/830, 42° RAL9006
04.021.0301.02.830 		LED COB 90 11 760 42 Gray 830 IN
MetalSpot 60 Eco 3-phase track LED/930, 42° RAL9006
04.021.0301.02.930 		LED COB 90 11 700 42 Gray 930 IN
MetalSpot 60 Eco 3-phase track LED/940, 42° RAL9006
04.021.0301.02.940 		LED COB 90 11 720 42 Gray 940 IN
MetalSpot 60 Eco 3-phase track LED/830, 42° RAL9005
04.021.0301.03.830 		LED COB 90 11 760 42 Black 830 IN
MetalSpot 60 Eco 3-phase track LED/930, 42° RAL9005
04.021.0301.03.930 		LED COB 90 11 700 42 Black 930 IN
MetalSpot 60 Eco 3-phase track LED/940, 42° RAL9005
04.021.0301.03.940 		LED COB 90 11 720 42 Black 940 IN
MetalSpot 60 Double 3-phase track GU10 RAL9016
04.021.0320.01 		Lampa GU10 LED 102 4 410 42 White N/D Double
MetalSpot 60 Double 3-phase track GU10 RAL9006
04.021.0320.02 		Lampa GU10 LED 102 4 410 42 Gray N/D Double
MetalSpot 60 Double 3-phase track GU10 RAL9005
04.021.0320.03 		Lampa GU10 LED 102 4 410 42 Black N/D Double
MetalSpot 60 Double 3-phase track LED/830, 42° RAL9016
04.021.0321.01.830 		LED COB 102 11 760 42 White 830 Double
MetalSpot 60 Double 3-phase track LED/930, 42° RAL9016
04.021.0321.01.930 		LED COB 102 11 700 42 White 930 Double
MetalSpot 60 Double 3-phase track LED/940, 42° RAL9016
04.021.0321.01.940 		LED COB 102 11 720 42 White 940 Double
MetalSpot 60 Double 3-phase track LED/830, 42° RAL9006
04.021.0321.02.830 		LED COB 102 11 760 42 Gray 830 Double
MetalSpot 60 Double 3-phase track LED/930, 42° RAL9006
04.021.0321.02.930 		LED COB 102 11 700 42 Gray 930 Double
MetalSpot 60 Double 3-phase track LED/940, 42° RAL9006
04.021.0321.02.940 		LED COB 102 11 720 42 Gray 940 Double
MetalSpot 60 Double 3-phase track LED/830, 42° RAL9005
04.021.0321.03.830 		LED COB 102 11 760 42 Black 830 Double
MetalSpot 60 Double 3-phase track LED/930, 42° RAL9005
04.021.0321.03.930 		LED COB 102 11 700 42 Black 930 Double
MetalSpot 60 Double 3-phase track LED/940, 42° RAL9005
04.021.0321.03.940 		LED COB 102 11 720 42 Black 940 Double
Lighting effects
