Smart
Eco-friendly
Modern
User friendly
Stylish
Technical data
Luminaire power
6 - 12 [W]
Luminaire luminous flux
30 - 360 [lm]
Type of diffuser/plate
PLX, Lens
Distribution angle
18°, 70°
Color temperature
3000 K, 4000 K
Color rendering index
80, 90
Light sources energy efficiency class
E
Lifetime Lxx Bxx
L90B10@60.000h, depending on the light source
Length L
100, 200 mm
The color of the housing
White RAL9016, Black RAL9005, Gray RAL9006
IP
IP54, IP65
Type of control
ON/OFF
Supply voltage
220-240 VAC, 50/60 Hz
[mm]
For download
You are about to download a large amount of files.
It may take a while. Do you want to continue?
Filters
| Code | Type of diffuser/plate | Type of light source | Lighting direction | Distribution angle [°] | Length L [mm] | Luminaire power [W] | The color of the housing | The color of the light | Files |
|---|---|---|---|---|---|---|---|---|---|

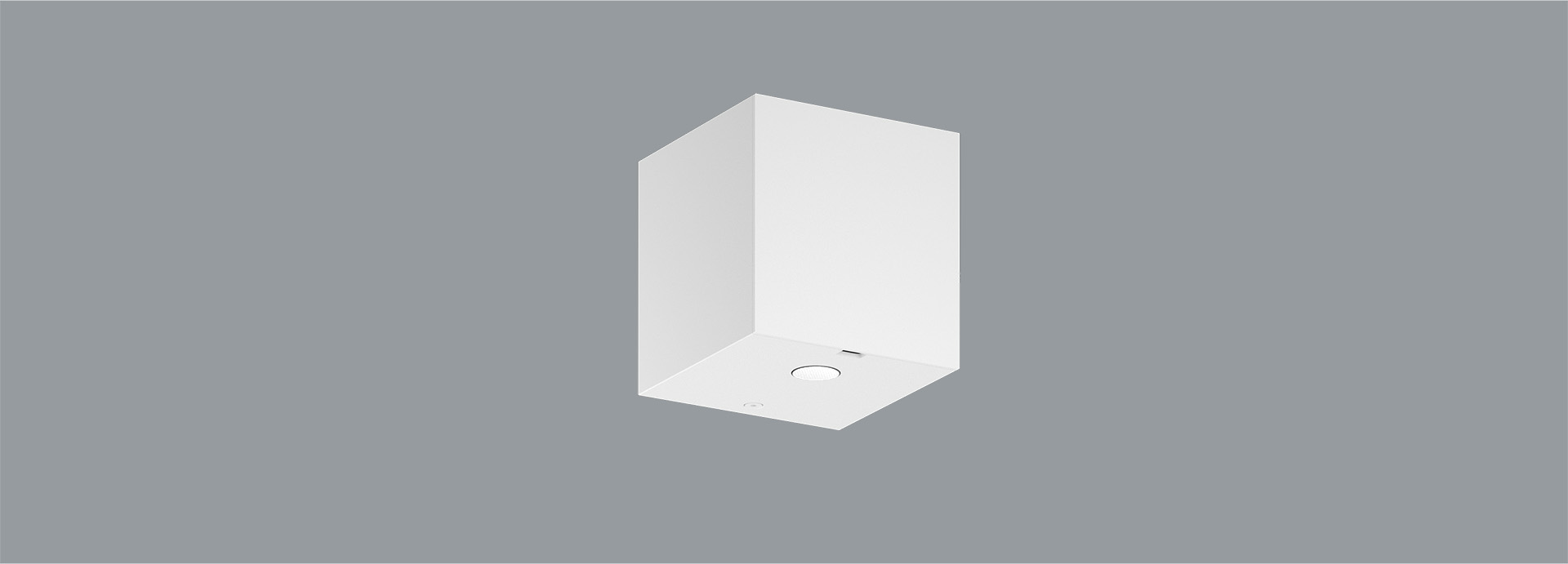

 Greg Wall Lens DI 930, 18d. IP65 RAL9017 |
Lens | LED HIGH POWER | DI | 18° | 100 | 6 | White RAL9016 | 930 |
|
|
Greg Wall Lens DI 940, 18d. IP65 RAL9017 |
Lens | LED HIGH POWER | DI | 18° | 100 | 6 | White RAL9016 | 940 |
|
 Greg Wall Lens DI 930, 18d. IP65 RAL9007 |
Lens | LED HIGH POWER | DI | 18° | 100 | 6 | Gray RAL9006 | 930 |
|
|
Greg Wall Lens DI 940, 18d. IP65 RAL9007 |
Lens | LED HIGH POWER | DI | 18° | 100 | 6 | Gray RAL9006 | 940 |
|
 Greg Wall Lens DI 930, 18d. IP65 RAL9006 |
Lens | LED HIGH POWER | DI | 18° | 100 | 6 | Black RAL9005 | 930 |
|
|
Greg Wall Lens DI 940, 18d. IP65 RAL9006 |
Lens | LED HIGH POWER | DI | 18° | 100 | 6 | Black RAL9005 | 940 |
|
|
Greg Wall Lens DI/IN 930, 18d. IP65 RAL9017 |
Lens | LED HIGH POWER | DI/IN | 18° | 100 | 12 | White RAL9016 | 930 |
|
|
Greg Wall Lens DI/IN 940, 18d. IP65 RAL9017 |
Lens | LED HIGH POWER | DI/IN | 18° | 100 | 12 | White RAL9016 | 940 |
|
|
Greg Wall Lens DI/IN 930, 18d. IP65 RAL9007 |
Lens | LED HIGH POWER | DI/IN | 18° | 100 | 12 | Gray RAL9006 | 930 |
|
|
Greg Wall Lens DI/IN 940, 18d. IP65 RAL9007 |
Lens | LED HIGH POWER | DI/IN | 18° | 100 | 12 | Gray RAL9006 | 940 |
|
|
Greg Wall Lens DI/IN 930, 18d. IP65 RAL9006 |
Lens | LED HIGH POWER | DI/IN | 18° | 100 | 12 | Black RAL9005 | 930 |
|
|
Greg Wall Lens DI/IN 940, 18d. IP65 RAL9006 |
Lens | LED HIGH POWER | DI/IN | 18° | 100 | 12 | Black RAL9005 | 940 |
|

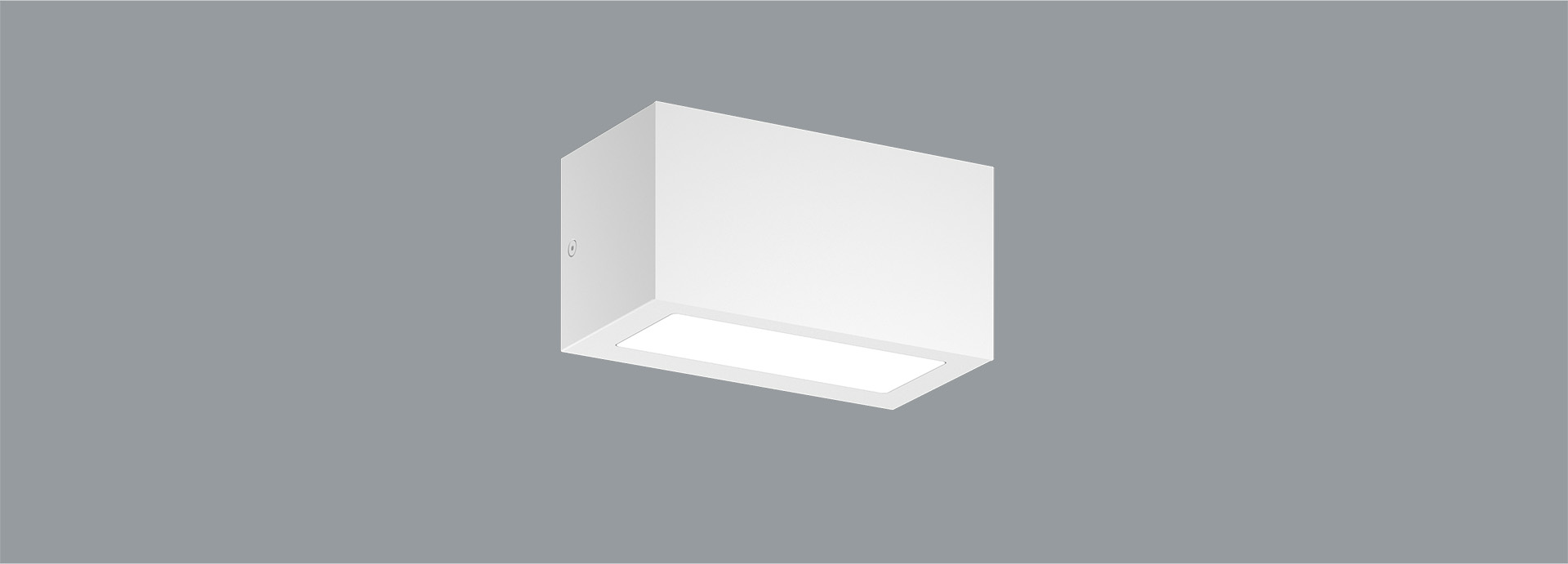

 Greg L Retrofit Wall PLX DI G9 IP54 RAL9016 |
PLX | Lampa G9 LED | DI | 70° | 200 | 12 | White RAL9016 | 840 |
|
 Greg L Retrofit Wall PLX DI G9 IP54 RAL9006 |
PLX | Lampa G9 LED | DI | 70° | 200 | 12 | Gray RAL9006 | 840 |
|
 Greg L Retrofit Wall PLX DI G9 IP54 RAL9005 |
PLX | Lampa G9 LED | DI | 70° | 200 | 12 | Black RAL9005 | 840 |
|
 Greg Retrofit Wall PLX DI G9 IP54 RAL9016 |
PLX | Lampa G9 LED | DI | 70° | 100 | 6 | White RAL9016 | 840 |
|
 Greg Retrofit Wall PLX DI G9 IP54 RAL9006 |
PLX | Lampa G9 LED | DI | 70° | 100 | 6 | Gray RAL9006 | 840 |
|
 Greg Retrofit Wall PLX DI G9 IP54 RAL9005 |
PLX | Lampa G9 LED | DI | 70° | 100 | 6 | Black RAL9005 | 840 |
|
|
Greg L Retrofit Wall PLX DI/IN G9 IP54 RAL9016 |
PLX | Lampa G9 LED | DI/IN | 70° | 200 | 12 | White RAL9016 | 840 |
|
|
Greg L Retrofit Wall PLX DI/IN G9 IP54 RAL9006 |
PLX | Lampa G9 LED | DI/IN | 70° | 200 | 12 | Gray RAL9006 | 840 |
|
