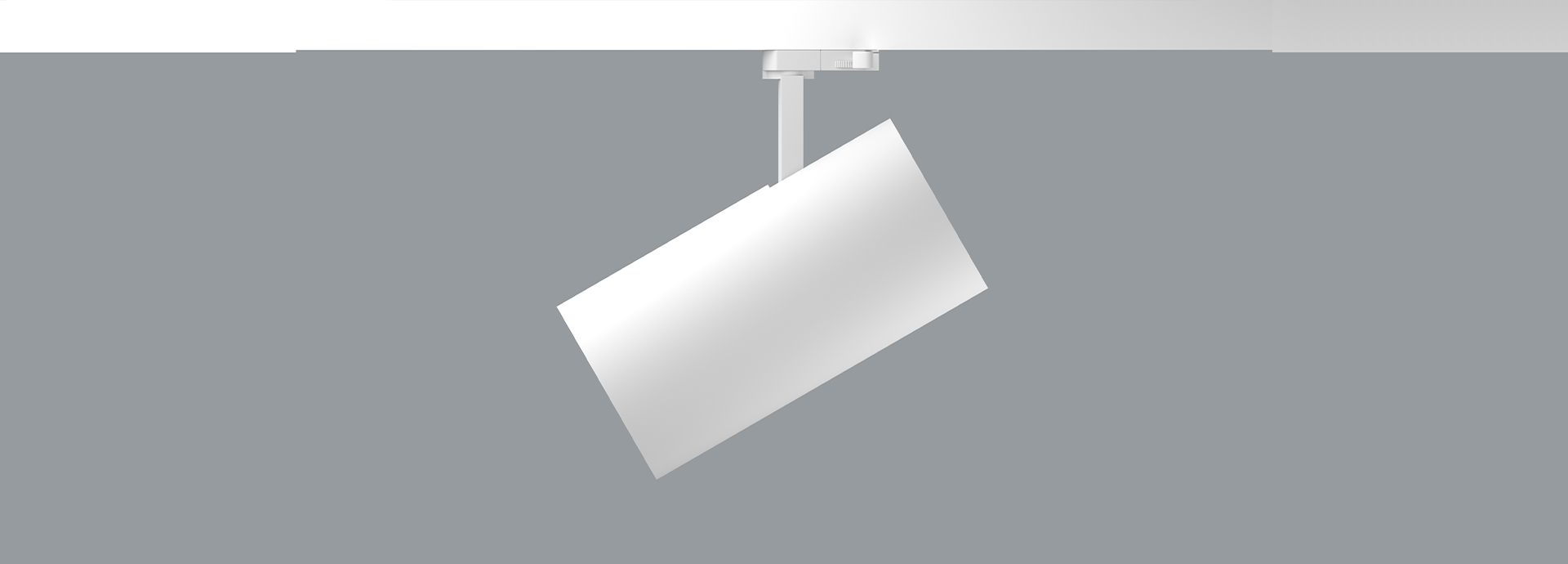

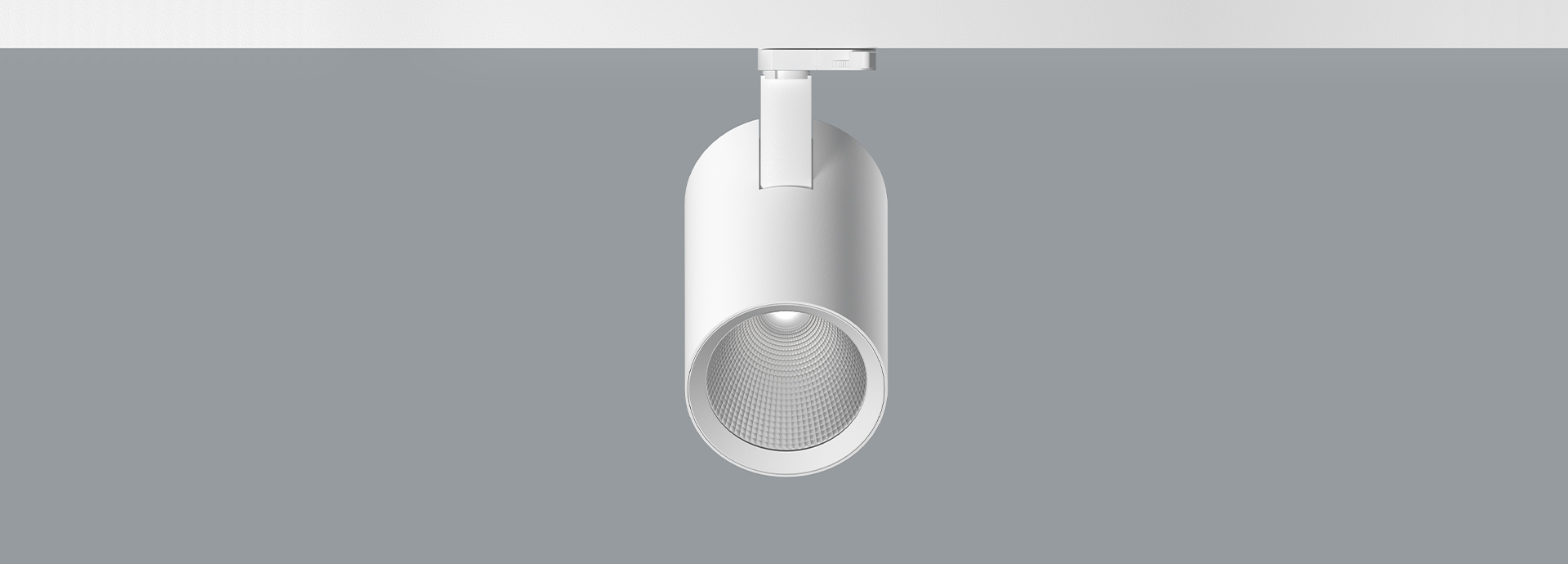

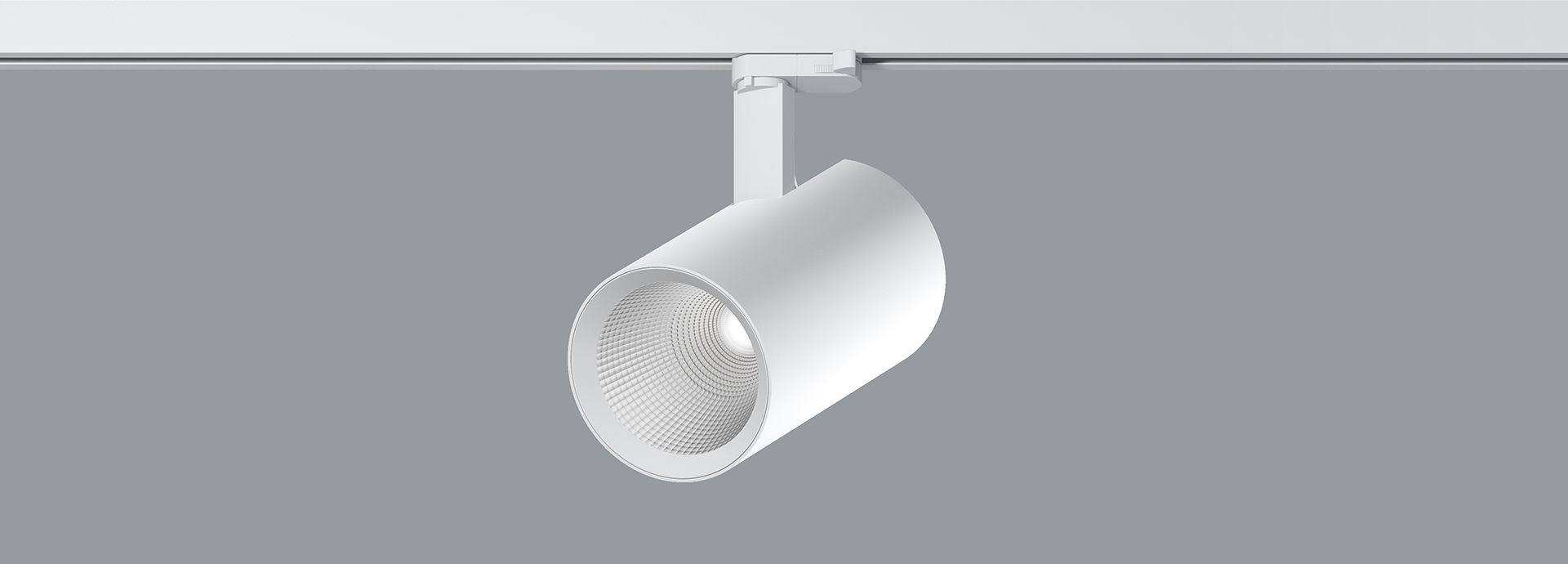

LUV 120

For track

Application: Shops, museums, expositions, accent lighting
Housing: Die-cast aluminum
Lifetime Lxx Bxx: L80B10@60.000h
Color rendering index: 90
Type of control: ON/OFF
Power Supply: electronic, complete with luminaire (ON / OFF)
Other: Suitable for installation in Global track

Project tools

3D model

LDT Files

Dokumenty

Family datasheet (.pdf)

CE Declaration of Conformity

Installation instruction

Luminaire mounted in the track
IP20
Tubular
ON/OFF
230V AC 50Hz
I class of protection
Certyfikat CE

Code	LED supply current	Luminaire power [W]	Luminaire luminous flux [lm]	Distribution angle [°]	Type of shutter/plate	The color of the housing	The color of the light	Files
Luv 120 3-phase track Transparent MIRO 930, 11d., 1050mA, RAL9016 04.118.6001.01.930.1A0	1050mA	43	3850	11	Transparent	White	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 250mA, RAL9016 04.118.6001.01.930.250	250mA	10	1000	11	Transparent	White	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 350mA, RAL9016 04.118.6001.01.930.350	350mA	14	1350	11	Transparent	White	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 500mA, RAL9016 04.118.6001.01.930.500	500mA	20	1900	11	Transparent	White	930	LDT File 3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 700mA, RAL9016 04.118.6001.01.930.700	700mA	28	2750	11	Transparent	White	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 1050mA, RAL9016 04.118.6001.01.940.1A0	1050mA	43	4050	11	Transparent	White	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 250mA, RAL9016 04.118.6001.01.940.250	250mA	10	1050	11	Transparent	White	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 350mA, RAL9016 04.118.6001.01.940.350	350mA	14	1450	11	Transparent	White	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 500mA, RAL9016 04.118.6001.01.940.500	500mA	20	2050	11	Transparent	White	940	LDT File 3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 700mA, RAL9016 04.118.6001.01.940.700	700mA	28	2900	11	Transparent	White	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 1050mA, RAL9006 04.118.6001.02.930.1A0	1050mA	43	3850	11	Transparent	Gray	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 250mA, RAL9006 04.118.6001.02.930.250	250mA	10	1000	11	Transparent	Gray	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 350mA, RAL9006 04.118.6001.02.930.350	350mA	14	1350	11	Transparent	Gray	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 500mA, RAL9006 04.118.6001.02.930.500	500mA	20	1900	11	Transparent	Gray	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 700mA, RAL9006 04.118.6001.02.930.700	700mA	28	2750	11	Transparent	Gray	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 1050mA, RAL9006 04.118.6001.02.940.1A0	1050mA	43	4050	11	Transparent	Gray	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 250mA, RAL9006 04.118.6001.02.940.250	250mA	10	1050	11	Transparent	Gray	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 350mA, RAL9006 04.118.6001.02.940.350	350mA	14	1450	11	Transparent	Gray	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 500mA, RAL9006 04.118.6001.02.940.500	500mA	20	2050	11	Transparent	Gray	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 700mA, RAL9006 04.118.6001.02.940.700	700mA	28	2900	11	Transparent	Gray	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 1050mA, RAL9005 04.118.6001.03.930.1A0	1050mA	43	3850	11	Transparent	Black	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 250mA, RAL9005 04.118.6001.03.930.250	250mA	10	1000	11	Transparent	Black	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 350mA, RAL9005 04.118.6001.03.930.350	350mA	14	1350	11	Transparent	Black	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 500mA, RAL9005 04.118.6001.03.930.500	500mA	20	1900	11	Transparent	Black	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 11d., 700mA, RAL9005 04.118.6001.03.930.700	700mA	28	2750	11	Transparent	Black	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 1050mA, RAL9005 04.118.6001.03.940.1A0	1050mA	43	4050	11	Transparent	Black	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 250mA, RAL9005 04.118.6001.03.940.250	250mA	10	1050	11	Transparent	Black	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 350mA, RAL9005 04.118.6001.03.940.350	350mA	14	1450	11	Transparent	Black	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 500mA, RAL9005 04.118.6001.03.940.500	500mA	20	2050	11	Transparent	Black	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 11d., 700mA, RAL9005 04.118.6001.03.940.700	700mA	28	2900	11	Transparent	Black	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 25d., 1050mA, RAL9016 04.118.6002.01.930.1A0	1050mA	43	3800	25	Transparent	White	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 25d., 250mA, RAL9016 04.118.6002.01.930.250	250mA	10	1000	25	Transparent	White	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 25d., 350mA, RAL9016 04.118.6002.01.930.350	350mA	14	1350	25	Transparent	White	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 25d., 500mA, RAL9016 04.118.6002.01.930.500	500mA	20	1900	25	Transparent	White	930	LDT File 3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 930, 25d., 700mA, RAL9016 04.118.6002.01.930.700	700mA	28	2700	25	Transparent	White	930	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 25d., 1050mA, RAL9016 04.118.6002.01.940.1A0	1050mA	43	3950	25	Transparent	White	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 25d., 250mA, RAL9016 04.118.6002.01.940.250	250mA	10	1050	25	Transparent	White	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 25d., 350mA, RAL9016 04.118.6002.01.940.350	350mA	14	1400	25	Transparent	White	940	3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 25d., 500mA, RAL9016 04.118.6002.01.940.500	500mA	20	2000	25	Transparent	White	940	LDT File 3D model Product datasheet (.pdf)
Luv 120 3-phase track Transparent MIRO 940, 25d., 700mA, RAL9016 04.118.6002.01.940.700	700mA	28	2850	25	Transparent	White	940	3D model Product datasheet (.pdf)
