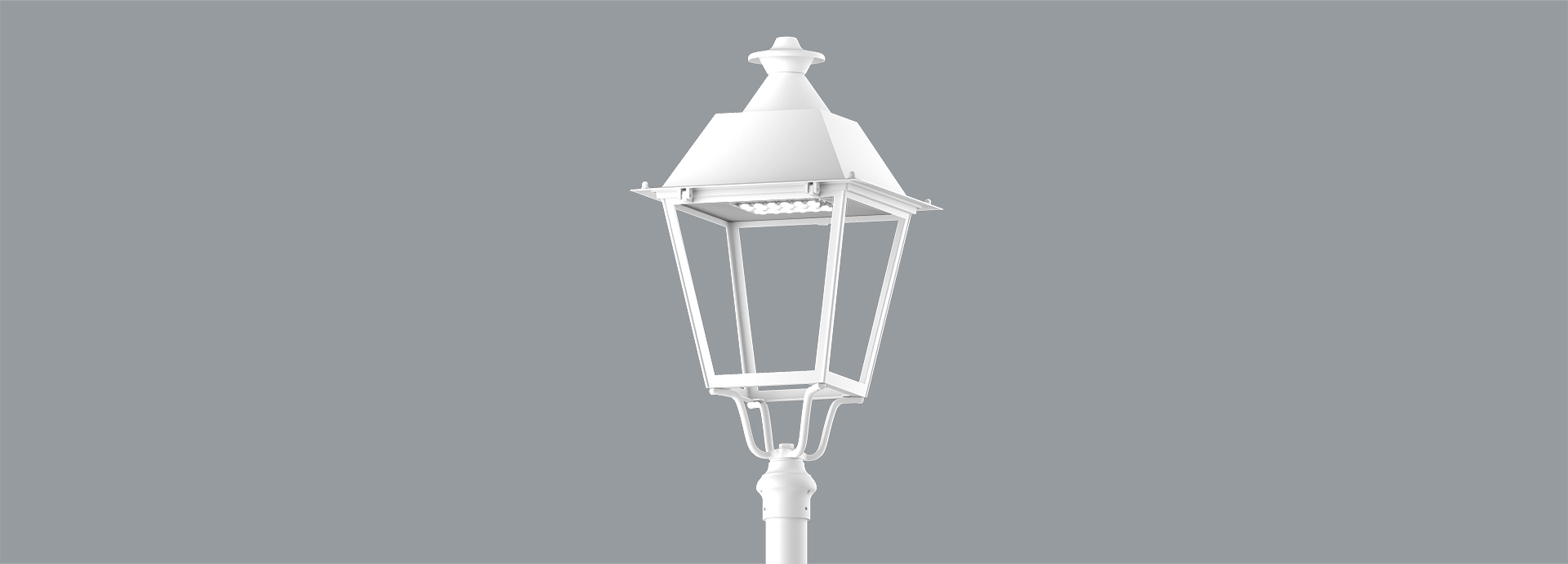

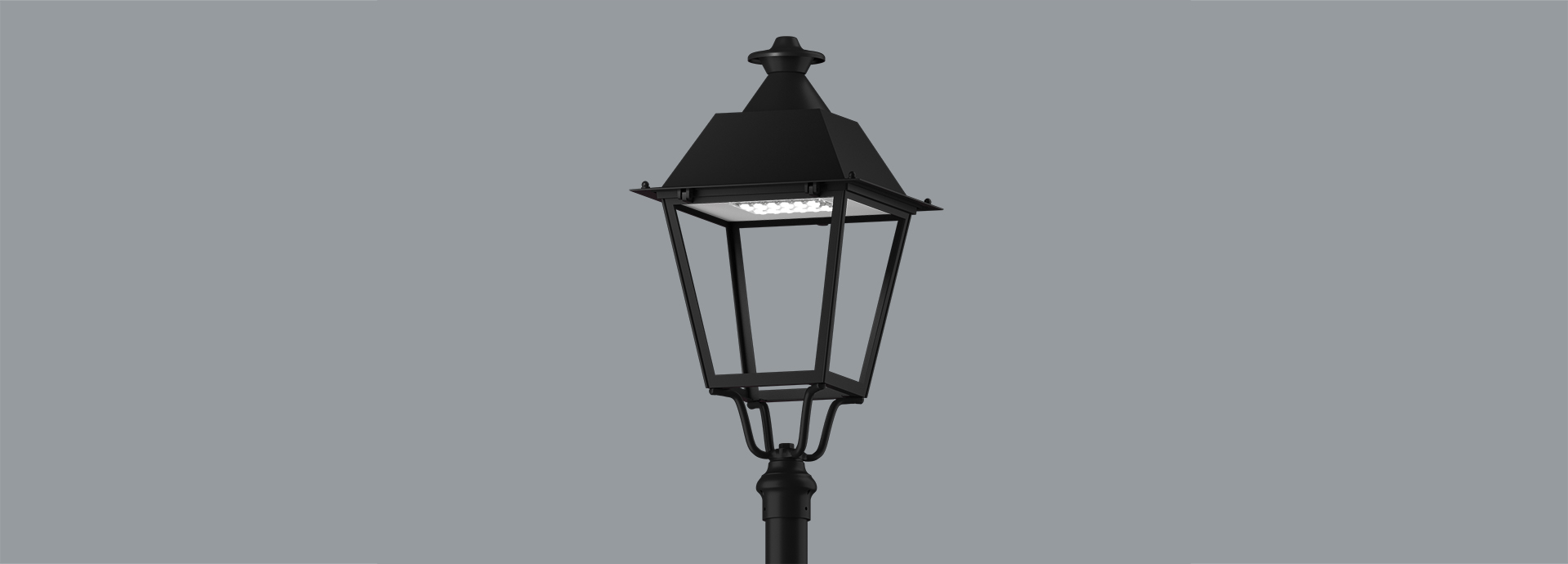

AVIEO

On a pole

Application: outdoor areas, paths, parks
Housing: cast aluminum, painted
Lifetime Lxx Bxx: L80B10@75.000h
Color rendering index: 70
Color temperature: 4000 K
Type of control: ON/OFF
Power Supply: electronic, complete with luminaire (ON / OFF)
Other: The luminaire is designed to be mounted on poles / arms with a diameter Ø42 -Ø60mm
Project tools
Dokumenty

You are about to download a large amount of files.

It may take a while. Do you want to continue?

Hide filter
Type of assembly
Shape of the luminaire
Type of shutter/plate
The color of the housing
The color of the light
IP
Length [mm]
LED supply current
Optics
Luminaire power [W]
Luminaire luminous flux [lm]
Other
Code LED supply current Type of shutter/plate Optics Luminaire power [W] Luminaire luminous flux [lm] The color of the housing The color of the light Other Files
Avieo On pole Lens 1x2x6 740, FW, IP54, 350mA, RAL9016
06.084.2001.01.740.FW 		350mA Lens FW 16 1700 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, PX, IP54, 350mA, RAL9016
06.084.2001.01.740.PX 		350mA Lens PX 16 1800 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, VSM, IP54, 350mA, RAL9016
06.084.2001.01.740.VSM 		350mA Lens VSM 16 1850 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, FW, IP54, 350mA, RAL9005
06.084.2001.03.740.FW 		350mA Lens FW 16 1700 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, PX, IP54, 350mA, RAL9005
06.084.2001.03.740.PX 		350mA Lens PX 16 1800 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, VSM, IP54, 350mA, RAL9005
06.084.2001.03.740.VSM 		350mA Lens VSM 16 1850 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, FW, IP54, 530mA, RAL9016
06.084.2002.01.740.FW 		530mA Lens FW 23 2450 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, PX, IP54, 500mA, RAL9016
06.084.2002.01.740.PX 		530mA Lens PX 23 2550 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, VSM, IP54, 500mA, RAL9016
06.084.2002.01.740.VSM 		530mA Lens VSM 23 2650 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, FW, IP54, 530mA, RAL9005
06.084.2002.03.740.FW 		530mA Lens FW 23 2450 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, PX, IP54, 500mA, RAL9005
06.084.2002.03.740.PX 		530mA Lens PX 23 2550 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, VSM, IP54, 500mA, RAL9005
06.084.2002.03.740.VSM 		530mA Lens VSM 23 2650 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, FW, IP54, 700mA, RAL9016
06.084.2003.01.740.FW 		700mA Lens FW 30 3050 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, PX, IP54, 700mA, RAL9016
06.084.2003.01.740.PX 		700mA Lens PX 30 3150 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, VSM, IP54, 700mA, RAL9016
06.084.2003.01.740.VSM 		700mA Lens VSM 30 3300 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, FW, IP54, 700mA, RAL9005
06.084.2003.03.740.FW 		700mA Lens FW 30 3050 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, PX, IP54, 700mA, RAL9005
06.084.2003.03.740.PX 		700mA Lens PX 30 3150 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, VSM, IP54, 700mA, RAL9005
06.084.2003.03.740.VSM 		700mA Lens VSM 30 3300 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, FW, IP54, 1050mA, RAL9016
06.084.2004.01.740.FW 		1050mA Lens FW 45 4100 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, PX, IP54, 1050mA, RAL9016
06.084.2004.01.740.PX 		1050mA Lens PX 45 4250 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, VSM, IP54, 1050mA, RAL9016
06.084.2004.01.740.VSM 		1050mA Lens VSM 45 4450 White 740 1x2x6
Avieo On pole Lens 1x2x6 740, FW, IP54, 1050mA, RAL9005
06.084.2004.03.740.FW 		1050mA Lens FW 45 4100 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, PX, IP54, 1050mA, RAL9005
06.084.2004.03.740.PX 		1050mA Lens PX 45 4250 Black 740 1x2x6
Avieo On pole Lens 1x2x6 740, VSM, IP54, 1050mA, RAL9005
06.084.2004.03.740.VSM 		1050mA Lens VSM 45 4450 Black 740 1x2x6
Avieo On pole Lens 2x2x6 740, FW, IP54, 350mA, RAL9016
06.084.2005.01.740.FW 		350mA Lens FW 29 3400 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, PX, IP54, 350mA, RAL9016
06.084.2005.01.740.PX 		350mA Lens PX 29 3550 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, VSM, IP54, 350mA, RAL9016
06.084.2005.01.740.VSM 		350mA Lens VSM 29 3700 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, FW, IP54, 350mA, RAL9005
06.084.2005.03.740.FW 		350mA Lens FW 29 3400 Black 740 2x2x6
Avieo On pole Lens 2x2x6 740, PX, IP54, 350mA, RAL9005
06.084.2005.03.740.PX 		350mA Lens PX 29 3550 Black 740 2x2x6
Avieo On pole Lens 2x2x6 740, VSM, IP54, 350mA, RAL9005
06.084.2005.03.740.VSM 		350mA Lens VSM 29 3700 Black 740 2x2x6
Avieo On pole Lens 2x2x6 740, FW, IP54, 530mA, RAL9016
06.084.2006.01.740.FW 		530mA Lens FW 42 4850 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, PX, IP54, 500mA, RAL9016
06.084.2006.01.740.PX 		530mA Lens PX 42 5050 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, VSM, IP54, 500mA, RAL9016
06.084.2006.01.740.VSM 		530mA Lens VSM 42 5300 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, FW, IP54, 530mA, RAL9005
06.084.2006.03.740.FW 		530mA Lens FW 42 4850 Black 740 2x2x6
Avieo On pole Lens 2x2x6 740, PX, IP54, 500mA, RAL9005
06.084.2006.03.740.PX 		530mA Lens PX 42 5050 Black 740 2x2x6
Avieo On pole Lens 2x2x6 740, VSM, IP54, 500mA, RAL9005
06.084.2006.03.740.VSM 		530mA Lens VSM 42 5300 Black 740 2x2x6
Avieo On pole Lens 2x2x6 740, FW, IP54, 700mA, RAL9016
06.084.2007.01.740.FW 		700mA Lens FW 56 6100 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, PX, IP54, 700mA, RAL9016
06.084.2007.01.740.PX 		700mA Lens PX 56 6350 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, VSM, IP54, 700mA, RAL9016
06.084.2007.01.740.VSM 		700mA Lens VSM 56 6600 White 740 2x2x6
Avieo On pole Lens 2x2x6 740, FW, IP54, 700mA, RAL9005
06.084.2007.03.740.FW 		700mA Lens FW 56 6100 Black 740 2x2x6

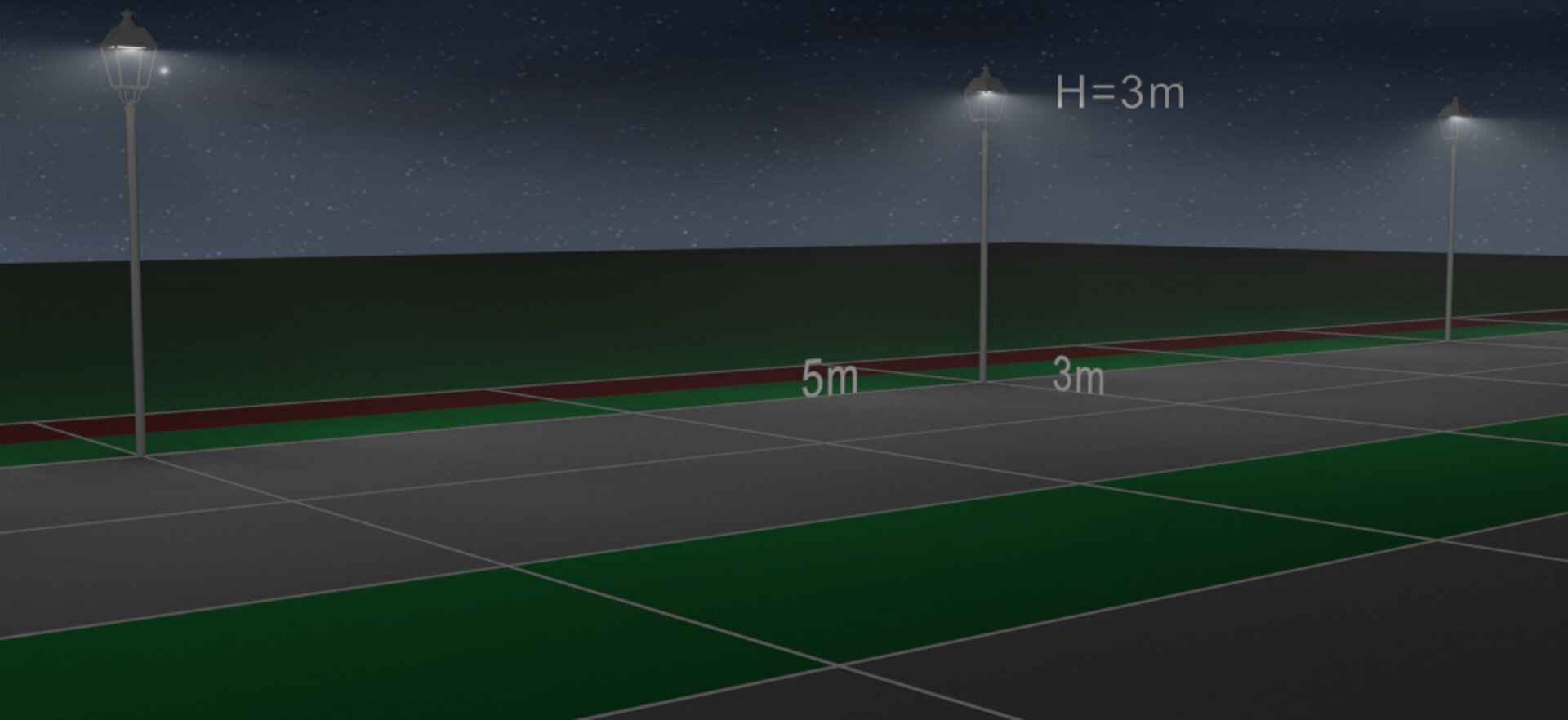

Lighting effects
