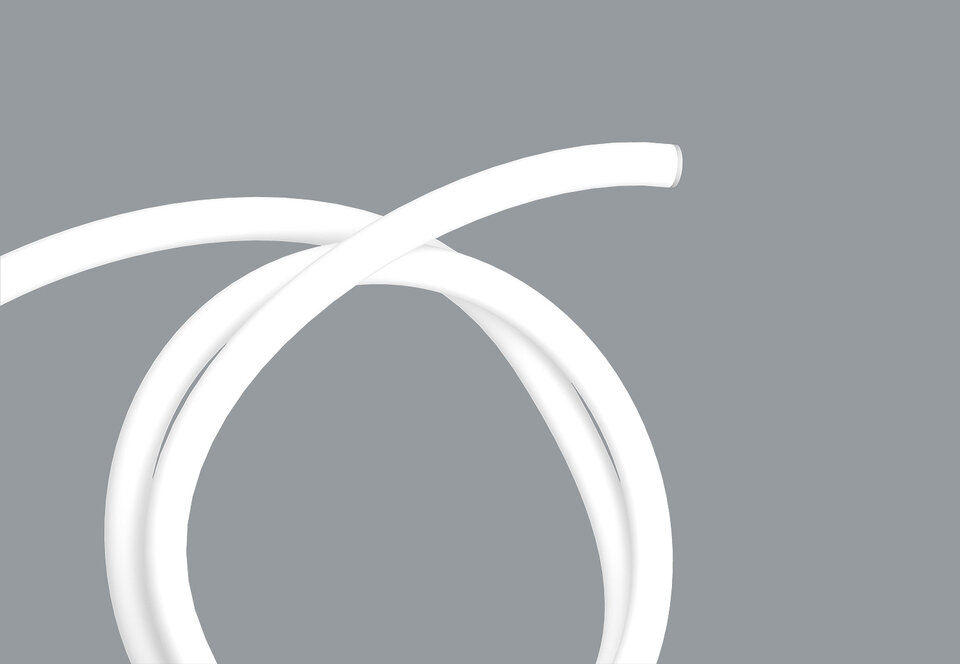

ArtLine LED Tape light 930, 15W/m, 320led/m, 24V/DC, IP67, roll=5m
10.160.0001.930
1 /
×
❮
❯
Technical data
  • Oprawa zwieszana
  • PLX
  • 24V DC
  • III class of protection
  • CRI>90 3000K
  • Certyfikat CE
  • IP67
Luminaire power
15 W
Luminaire luminous flux
570 lm
Luminaire luminous efficacy
38 lm/W
Type of diffuser/plate
PLX
Color temperature
3000 K
Color rendering index
90
Supply voltage
24V DC
Mass
0.6 kg
Application: office buildings, apartments, private houses
Housing: plastic
Power Supply: electronic, 24V, to be ordered separately
Other: can be cut anywhere. Mounting accessories ordered separately. Supply voltage - 24V/DC. Maximum section length for one connection 5000mm.
Technical drawing
For download
design tools
Documents
Accessories
Bases
Baza sufitowa D=80mm, uchwyt do montażu pionowego
Code
Name
12.160.0001.01
Ceiling base D=80mm with bracket for vertical installation and power cord L=1500mm, white RAL9016
12.160.0001.03
Ceiling base D=80mm with bracket for vertical installation and power cord L=1500mm, black RAL9005
Baza sufitowa D=80mm, uchwyt do montażu cyrkularnego
Code
Name
12.160.0002.01
Ceiling base D=80mm with bracket for circular installation and power cord L=1500mm, white RAL9016
12.160.0002.03
Ceiling base D=80mm with bracket for circular installation and power cord L=1500mm, black RAL9005
Baza sufitowa D=80mm, uchwyt do robienia łuków
Code
Name
12.160.0003.01
Ceiling base D=80mm with bracket for semicircular installation, white RAL9016, set 2pcs
12.160.0003.03
Ceiling base D=80mm with bracket for semicircular installation, black RAL9005, set 2pcs
Ceiling base D=80mm with a horizontal bracket and a rigid adjustable suspension L=750-1500mm
Code
Name
12.160.0005.01
Ceiling base D=80mm with a horizontal bracket and a rigid adjustable suspension L=750-1500mm, white RAL9016
12.160.0005.03
Ceiling base D=80mm with a horizontal bracket and a rigid adjustable suspension L=750-1500mm, black RAL9005
Ceiling base D=80mm with a vertical power supply bracket and a rigid adjustable suspension L=750-1500mm
Code
Name
12.160.0006.01
Ceiling base D=80mm with a vertical power supply bracket and a rigid adjustable suspension L=750-1500mm, white RAL9016
12.160.0006.03
Ceiling base D=80mm with a vertical power supply bracket and a rigid adjustable suspension L=750-1500mm, black RAL9005
Baza ścienna D=80mm, uchwyty do robienia kszałtów
Code
Name
12.160.0004.01
Wall base D=80mm with brackets for making geometric shapes, white RAL9016
12.160.0004.03
Wall base D=80mm with brackets for making geometric shapes, black RAL9005
End caps
Końcówka
Code
Name
12.160.0010.01
End cap for ArtLine, white RAL9016
12.160.0010.03
End cap for ArtLine, black RAL9005
Grips
Uchwyt transparentny
Code
Name
12.160.0020
Transparent bracket for Artline, surface mounting
Power supplies
Driver LED CV 30W 24V/DC, 1.25A, IP20 ( LL1x30-E-CV24)
Code
Name
Helvar 5587000
Driver LED CV 30W 24V/DC, 1.25A, IP20, LL1x30-E-CV24 (145x41x32mm)
Driver LED CV 75W 24V/DC, 3.125A, IP20 (LL1x75-E-CV24)
Code
Name
Helvar 5588000
Driver LED CV 75W 24V/DC, 3.125A, IP20 (LL1x75-E-CV24)
Driver LED CV 120W 24V/DC, 5.0A, IP20 (LL1x120-CV24)
Code
Name
Helvar 5576000
Driver LED CV 120W 24V/DC, 5.0A, IP20, LL1x120-CV24 (300x40x30mm)
Driver LED CV 180W 24V/DC, 7.5A, IP20 (LL1x180-CV24)
Code
Name
Helvar 5591000
Driver LED CV 180W 24V/DC, 7.5A, IP20, LL1x180-CV24 (345x51x35mm)
Suspensions
Zawieszenie z poziomowym uchwytem, mocowanie do sufitu
Code
Name
36.3952.01
Suspension with a horizontal white bracket D=25mm and a white cable L=1500mm, ceiling installation, white RAL9016
36.3952.03
Suspension with a horizontal black bracket D=25mm and a black cable L=1500mm, ceiling installation, black RAL9005
