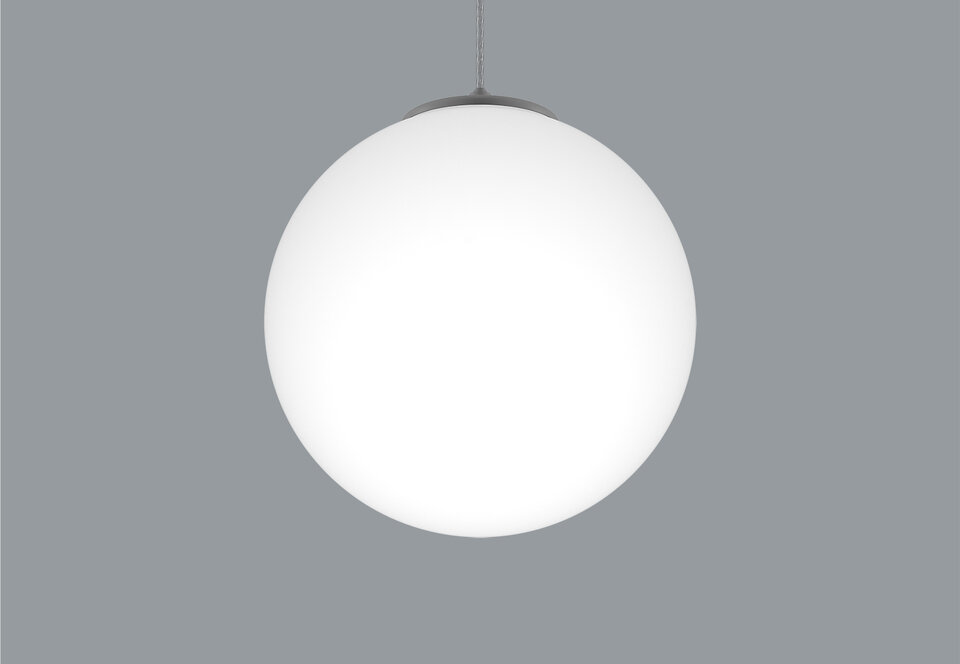

Golf 300 Suspended Opal ST/930, D=300mm, DALI, RAL9006
10.073.3003.02.930.DALI
Technical data
  • Oprawa zwieszana
  • Frost
  • I class of protection
  • DALI
  • 220-240 VAC, 50/60 Hz
  • CRI>90 3000K
  • IP20
  • Certyfikat CE
  • Housing color RAL9006
  • Ball
Luminaire power
19 W
Luminaire luminous flux
1,600 lm
Luminaire luminous flux DI
1,600 lm
Luminaire luminous efficacy
84 lm/W
Type of diffuser/plate
Frost
Distribution angle
270°
Color temperature
3000 K
Color rendering index
90
Lifetime Lxx Bxx
L70B50@60.000h
The color of the housing
Gray RAL9006
Supply voltage
220-240 VAC, 50/60 Hz
Mass
1.7 kg
Application: offices, shops, entrance lobbies, apartments
Housing: aluminium
Power Supply: electronic, complete with luminaire
Other: additionally, the appropriate electric suspension with the selected length Z should be selected.
Technical drawing
The way of lighting
Curve of light
For download
design tools
Documents
Accessories

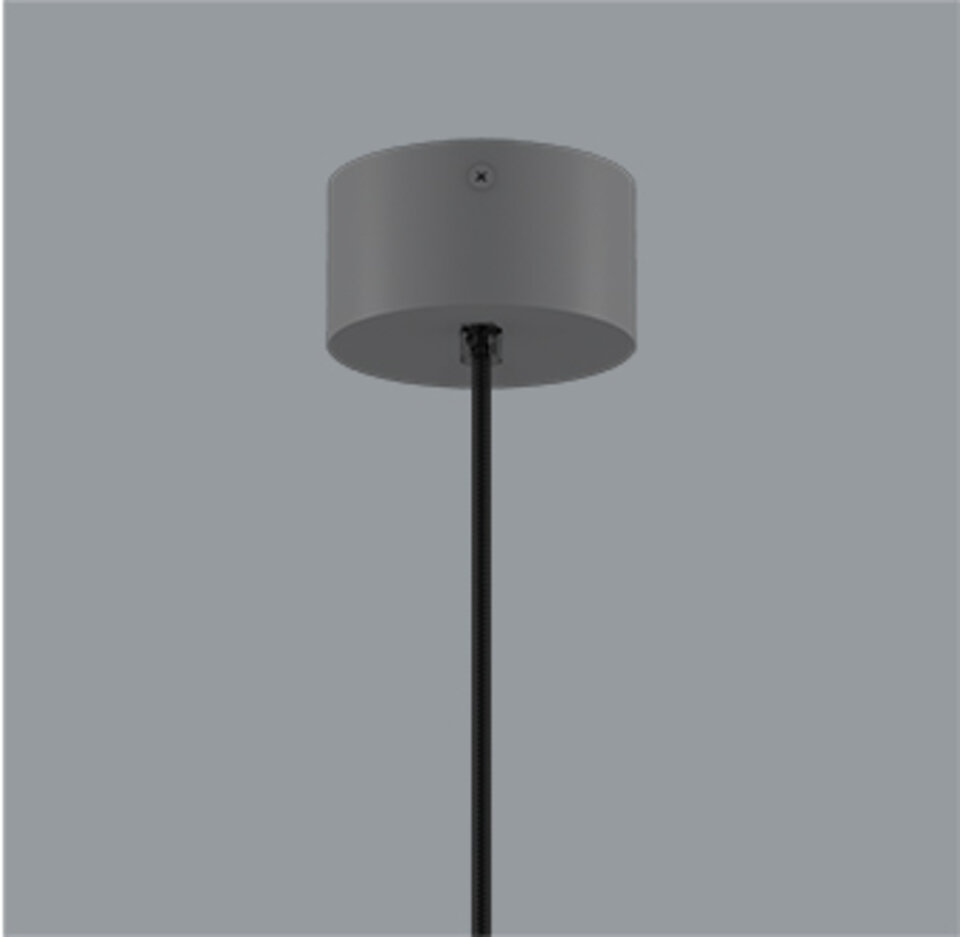

Suspensions
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 1200mm, cable
Code
Name
12.073.3034.02
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 1200mm, cable, RAL9006 (TCI Square DALI)
12.073.3034.03
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 1200mm, cable, RAL9005 (TCI Square DALI)
12.073.3034.01
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 1200mm, cable, RAL9016 (TCI Square DALI)
12.073.3034.31
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 1200mm, cable, RAL9005/RAL9016 (TCI Square DALI)
12.073.3034.13
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 1200mm, cable, RAL9016/RAL9005 (TCI Square DALI)
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 3000mm, cable
Code
Name
12.073.3035.01
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 3000mm, cable, RAL9016 (TCI Square DALI)
12.073.3035.02
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 3000mm, cable, RAL9006 (TCI Square DALI)
12.073.3035.03
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 3000mm, cable, RAL9005 (TCI Square DALI)
12.073.3035.13
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 3000mm, cable, RAL9016/RAL9005 (TCI Square DALI)
12.073.3035.31
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 3000mm, cable, RAL9005/RAL9016 (TCI Square DALI)
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 5000mm
Code
Name
12.073.3036.01
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 5000mm, cable, RAL9016 (TCI Square DALI)
12.073.3036.02
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 5000mm, cable, RAL9006 (TCI Square DALI)
12.073.3036.03
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 5000mm, cable, RAL9005 (TCI Square DALI)
12.073.3036.13
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 5000mm, cable, RAL9016/RAL9005 (TCI Square DALI)
12.073.3036.31
Electric suspension Ø100mm with power supply, 5x0.75mm2, DALI, 5000mm, cable, RAL9005/RAL9016 (TCI Square DALI)
