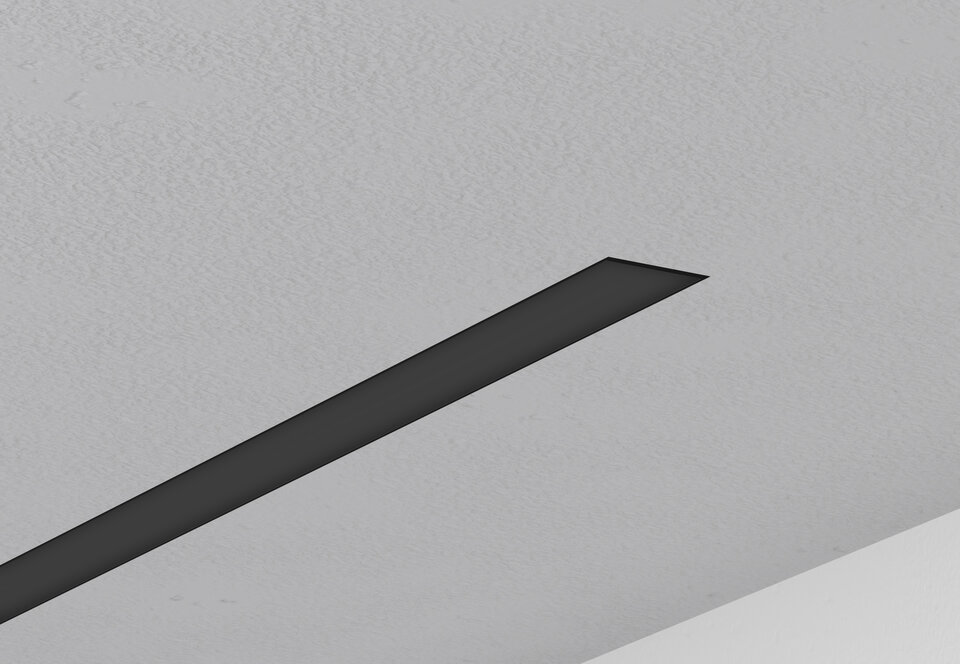

PROFILITE 45 EC Trimless Black PLX HO/840, L=561mm, DALI, RAL9005
09.313.0021.03.840.DALI
Technical data
  • Trimless luminaire
  • Black PLX
  • Certyfikat PZH
  • I class of protection
  • DALI
  • Klasa efektywności energetycznej B
  • 220-240 VAC, 50/60 Hz
  • CRI>80 4000K
  • Certyfikat CE
  • Housing color RAL9005
  • IP40
  • Line
Luminaire power
30 W
Luminaire luminous flux
910 lm
Luminaire luminous efficacy
30 lm/W
Type of diffuser/plate
Black PLX
Color temperature
4000 K
Color rendering index
80
Light sources energy efficiency class
B
SDCM
3
Photobiological safety
RG1 unlimited
Lifetime Lxx Bxx
L90B10@100.000h
The color of the housing
Black RAL9005
Supply voltage
220-240 VAC, 50/60 Hz
Mass
1.4 kg
Application: offices, shops, entrance lobbies, apartments
Housing: cast aluminum
Power Supply: electronic, complete with luminaire (ON / OFF)
Technical drawing
The way of lighting
Curve of light
For download
design tools
Documents
Accessories
End caps
Aluminium end cap, g=4mm
Code
Name
09.313.2801.01
Aluminium end cap, White RAL9016; g=4mm, set 2pcs
09.313.2801.02
Aluminium end cap, Gray RAL9006; g=4mm, set 2pcs
09.313.2801.03
Aluminium end cap, Black RAL9005; g=4mm, set 2pcs
Connectors
Linear connector, set
Code
Name
09.313.2901.00
Linear connector, set
Wiring
Through-wiring 2xLED 5x0.75mm2, L=560mm DALI
Code
Name
09.013.4500012
Through-wiring 2xLED 5x0.75mm2, L=560mm, DALI
