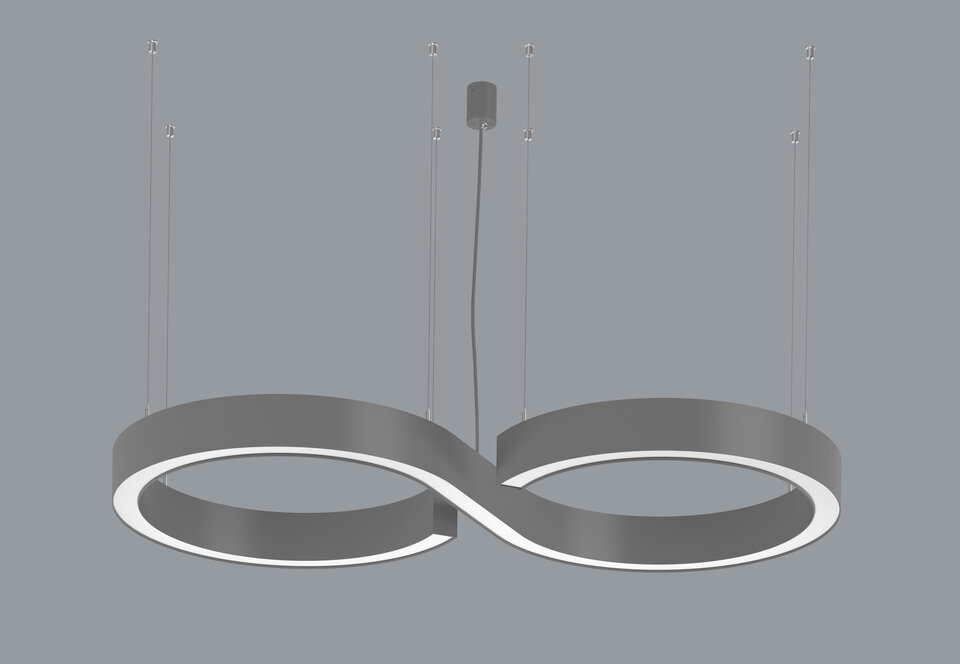

Infinity 45 Suspended Micro-p HE/830, RAL9006
09.162.3201.02.830
Technical data
  • Oprawa zwieszana
  • ON/OFF
  • I class of protection
  • Micro-p
  • Klasa efektywności energetycznej C
  • CRI>80 3000K
  • 220-240 VAC, 50/60 Hz
  • Certyfikat CE
  • Housing color RAL9006
  • IP40
  • Irregular
Luminaire power
22 W
Luminaire luminous flux
1,500 lm
Luminaire luminous flux DI
1,500 lm
Luminaire luminous efficacy
68 lm/W
Type of diffuser/plate
Micro-p
Distribution angle
66°
Color temperature
3000 K
Color rendering index
80
UGR
19
Light sources energy efficiency class
C
SDCM
3
Lifetime Lxx Bxx
L90B10@60.000h
The color of the housing
Gray RAL9006
Supply voltage
220-240 VAC, 50/60 Hz
Mass
5.7 kg
Application: offices, shops, entrance lobbies, apartments
Housing: cast aluminum
Power Supply: electronic, complete with luminaire
Other: additionally, the appropriate electric suspension and 8x mechanical suspensions with length Z should be selected.
Technical drawing
The way of lighting
Curve of light
For download
design tools
Documents
Accessories
Suspensions
Electric suspension Ø50mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable
Code
Name
12.000.3051.01
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9016
12.000.3051.02
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9006
12.000.3051.03
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9005
Electric suspension Ø50mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable
Code
Name
12.000.3052.01
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9016
12.000.3052.02
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9006
12.000.3052.03
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9005
Electric suspension Ø50mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable
Code
Name
12.000.3053.01
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9016
12.000.3053.03
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9005
12.000.3053.02
Electric suspension fi=50mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9006
Electric suspension Ø70mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable
Code
Name
12.000.3011.01
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9016
12.000.3011.02
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9006
12.000.3011.03
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 1200mm, steel wire+cable, RAL9005
Electric suspension Ø70mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable
Code
Name
12.000.3012.01
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9016
12.000.3012.02
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9006
12.000.3012.03
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 3000mm, steel wire+cable, RAL9005
Electric suspension Ø70mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable
Code
Name
12.000.3013.01
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9016
12.000.3013.02
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9006
12.000.3013.03
Electric suspension fi=70mm, 3x0.75mm2, ON/OFF, 5000mm, steel wire+cable, RAL9005
Mechanical suspension
Code
Name
70.0031
Mechanical suspension, L=1500mm
70.0031.01
Mechanical suspension, L=1500mm, white
70.0031.03
Mechanical suspension, L=1500mm, black
70.0032
Mechanical suspension, L=3000mm
70.0032.01
Mechanical suspension, L=3000mm, white
70.0032.03
Mechanical suspension, L=3000mm, black
70.0033
Mechanical suspension, L=5000mm
70.0033.01
Mechanical suspension, L=5000mm, white
70.0033.03
Mechanical suspension, L=5000mm, black
