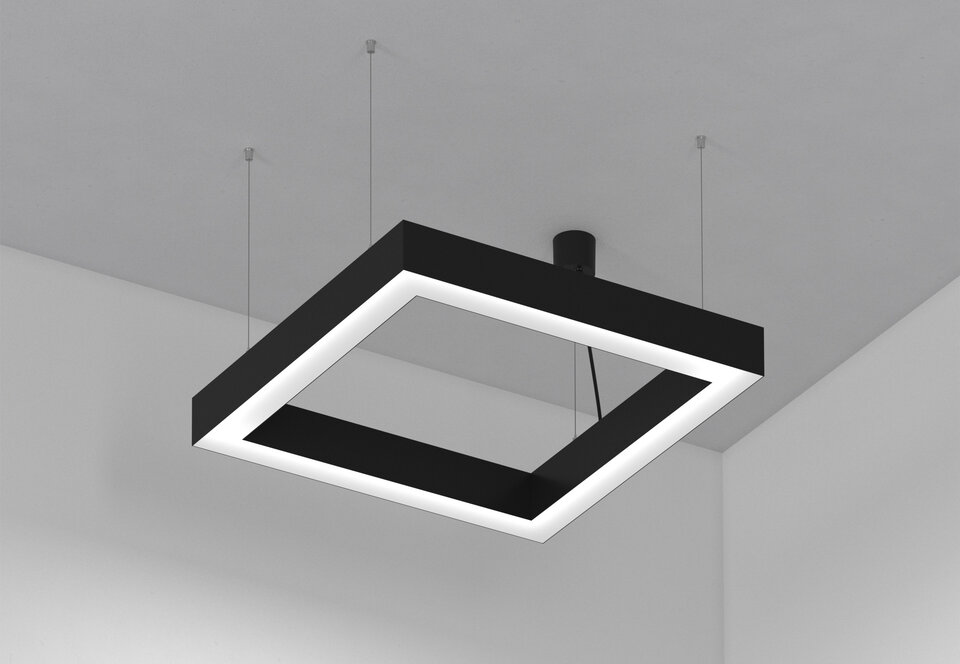

PROFILITE 60 Quadra Suspended DI Micro-p HE/840, L=630x630mm, DALI, RAL9005
09.153.3231.03.840.DALI
Technical data
  • Oprawa zwieszana
  • I class of protection
  • DALI
  • Micro-p
  • 220-240 VAC, 50/60 Hz
  • CRI>80 4000K
  • Certyfikat CE
  • Housing color RAL9005
  • IP40
  • Square
Luminaire power
36 W
Luminaire luminous flux
4,600 lm
Luminaire luminous flux DI
4,600 lm
Luminaire luminous efficacy
127 lm/W
Type of diffuser/plate
Micro-p
Distribution angle
70°
Color temperature
4000 K
Color rendering index
80
SDCM
3
Lifetime Lxx Bxx
L90B10@100.000h
The color of the housing
Black RAL9005
Supply voltage
220-240 VAC, 50/60 Hz
Mass
5.2 kg
Application: offices, shops, entrance lobbies, apartments
Housing: cast aluminum
Power Supply: electronic, complete with luminaire
Other: additionally, the appropriate electric suspension and 3x mechanical suspensions with length Z should be selected.
Technical drawing
The way of lighting
Curve of light
For download
design tools
Documents
Accessories
Suspensions
Electric suspension Ø70mm, 5x0.75mm2, DALI, 1200mm, steel wire+cable
Code
Name
12.000.3014.01
Electric suspension fi=70mm, 5x0.75mm2, DALI, 1200mm, steel wire+cable, RAL9016
12.000.3014.02
Electric suspension fi=70mm, 5x0.75mm2, DALI, 1200mm, steel wire+cable, RAL9006
12.000.3014.03
Electric suspension fi=70mm, 5x0.75mm2, DALI, 1200mm, steel wire+cable, RAL9005
Electric suspension Ø70mm, 5x0.75mm2, DALI, 3000mm, steel wire+cable
Code
Name
12.000.3015.01
Electric suspension fi=70mm, 5x0.75mm2, DALI, 3000mm, steel wire+cable, RAL9016
12.000.3015.02
Electric suspension fi=70mm, 5x0.75mm2, DALI, 3000mm, steel wire+cable, RAL9006
12.000.3015.03
Electric suspension fi=70mm, 5x0.75mm2, DALI, 3000mm, steel wire+cable, RAL9005
Electric suspension Ø70mm, 5x0.75mm2, DALI, 5000mm, steel wire+cable
Code
Name
12.000.3016.01
Electric suspension fi=70mm, 5x0.75mm2, DALI, 5000mm, steel wire+cable, RAL9016
12.000.3016.02
Electric suspension fi=70mm, 5x0.75mm2, DALI, 5000mm, steel wire+cable, RAL9006
12.000.3016.03
Electric suspension fi=70mm, 5x0.75mm2, DALI, 5000mm, steel wire+cable, RAL9005
Mechanical suspension
Code
Name
70.0031
Mechanical suspension, L=1500mm
70.0031.01
Mechanical suspension, L=1500mm, white
70.0031.03
Mechanical suspension, L=1500mm, black
70.0032
Mechanical suspension, L=3000mm
70.0032.01
Mechanical suspension, L=3000mm, white
70.0032.03
Mechanical suspension, L=3000mm, black
70.0033
Mechanical suspension, L=5000mm
70.0033.01
Mechanical suspension, L=5000mm, white
70.0033.03
Mechanical suspension, L=5000mm, black
