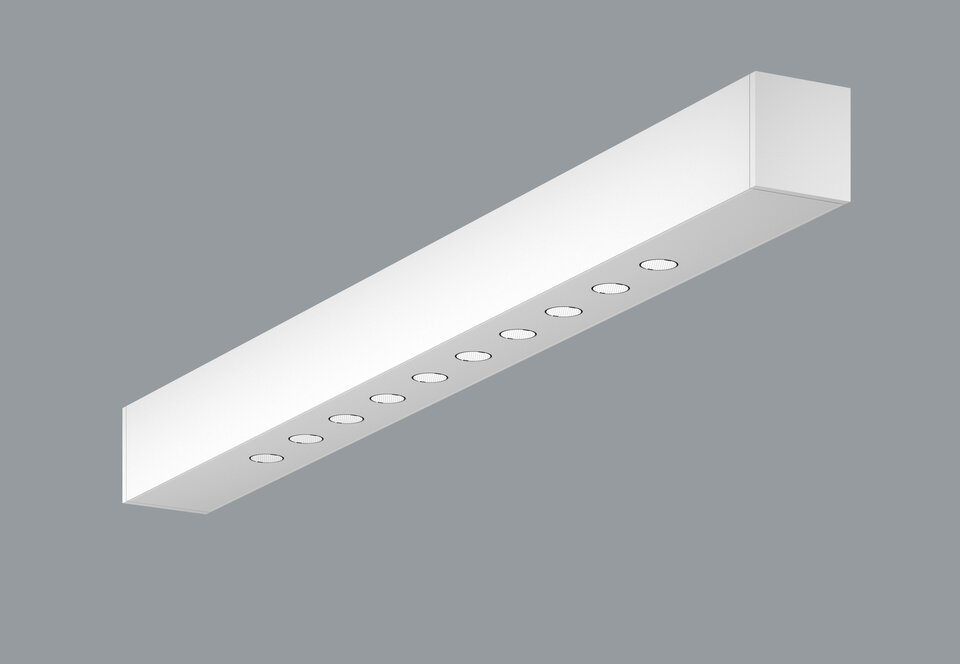

PROFILITE 45 Surface LENS 10x ST/940, 30d., RAL9016
09.013.2462.01.940
1 /
×
2 /
×
3 /
×
4 /
×
❮
❯
Technical data
  • Surface-mounted luminaire
  • Certyfikat PZH
  • ON/OFF
  • I class of protection
  • 220-240 VAC, 50/60 Hz
  • Lens
  • Housing color RAL9016
  • IP20
  • Certyfikat CE
  • CRI>90 4000K
  • Line
Luminaire power
16 W
Luminaire luminous flux
1,200 lm
Luminaire luminous efficacy
75 lm/W
Type of diffuser/plate
Lens
Distribution angle
30°
Color temperature
4000 K
Color rendering index
90
SDCM
3
Photobiological safety
RG1 unlimited
Lifetime Lxx Bxx
L90B10@100.000h
The color of the housing
White RAL9016
Supply voltage
220-240 VAC, 50/60 Hz
Mass
0.72 kg
Application: offices, shops, entrance lobbies, apartments
Housing: cast aluminum
Power Supply: electronic, complete with luminaire (ON / OFF)
Other: End caps should be ordered separately.
Technical drawing
The way of lighting
Curve of light
For download
design tools
Documents
Accessories
Connectors
Linear connector, set
Code
Name
09.013.2901.00
Linear connector, set
