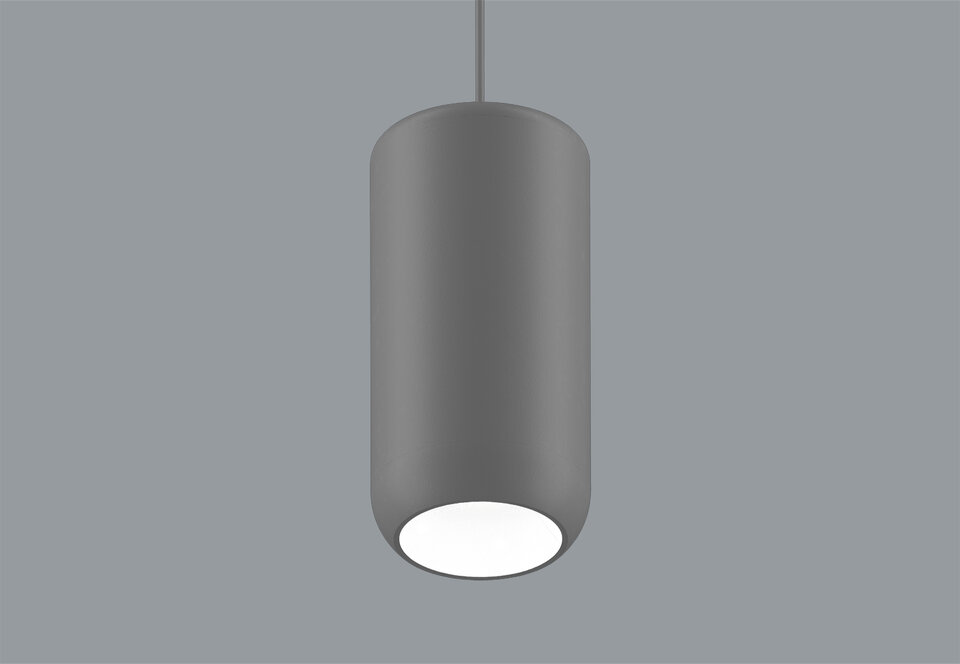

Bayo 130 Suspended C-shape PLX ST/830, H=263mm, DALI, RAL9006
02.202.3003.02.830.DALI
Technical data
  • Oprawa zwieszana
  • PLX
  • DALI
  • CRI>80 3000K
  • 220-240 VAC, 50/60 Hz
  • IP20
  • Certyfikat CE
  • Housing color RAL9006
  • Tubular
Luminaire power
12.1 W
Luminaire luminous flux
750 lm
Luminaire luminous efficacy
61 lm/W
Type of diffuser/plate
PLX
Distribution angle
96°
Color temperature
3000 K
Color rendering index
80
Lifetime Lxx Bxx
L80B10@50.000h
The color of the housing
Gray RAL9006
Supply voltage
220-240 VAC, 50/60 Hz
Mass
1.87 kg
Application: shops, entrance lobbies, toilets, apartments
Housing: aluminium
Power Supply: electronic, complete with luminaire
Other: additionally, the appropriate electric suspension with the length Z should be selected.
Technical drawing
The way of lighting
Curve of light
For download
design tools
Documents
Accessories
Suspensions
Electric suspension Ø70mm, 5x0.75mm2, L=1200mm, DALI, cable with braid
Code
Name
12.201.3014.11
Electric suspension Ø70mm, 5x0.75mm2, L=1200mm, DALI, cable with braid White, White RAL9016
12.201.3014.13
Electric suspension Ø70mm, 5x0.75mm2, L=1200mm, DALI, cable with braid White, Black RAL9005
12.201.3014.31
Electric suspension Ø70mm, 5x0.75mm2, L=1200mm, DALI, cable with braid Black, White RAL9016
12.201.3014.33
Electric suspension Ø70mm, 5x0.75mm2, L=1200mm, DALI, cable with braid Black, Black RAL9005
Electric suspension Ø70mm, 5x0.75mm2, L=3000mm, DALI, cable with braid
Code
Name
12.201.3015.11
Electric suspension Ø70mm, 5x0.75mm2, L=3000mm, DALI, cable with braid White, White RAL9016
12.201.3015.13
Electric suspension Ø70mm, 5x0.75mm2, L=3000mm, DALI, cable with braid White, Black RAL9005
12.201.3015.31
Electric suspension Ø70mm, 5x0.75mm2, L=3000mm, DALI, cable with braid Black, White RAL9016
12.201.3015.33
Electric suspension Ø70mm, 5x0.75mm2, L=3000mm, DALI, cable with braid Black, Black RAL9005
Electric suspension Ø70mm, 5x0.75mm2, L=5000mm, DALI, cable with braid
Code
Name
12.201.3016.11
Electric suspension Ø70mm, 5x0.75mm2, L=5000mm, DALI, cable with braid White, White RAL9016
12.201.3016.13
Electric suspension Ø70mm, 5x0.75mm2, L=5000mm, DALI, cable with braid White, Black RAL9005
12.201.3016.31
Electric suspension Ø70mm, 5x0.75mm2, L=5000mm, DALI, cable with braid Black, White RAL9016
12.201.3016.33
Electric suspension Ø70mm, 5x0.75mm2, L=5000mm, DALI, cable with braid Black, Black RAL9005
